Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball
Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball
Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball
Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball

In stock - ready to ship

Order now for delivery between 25 May and 28 May
Free shipping

Pay Securely with

Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball

Di Natale Bertelli - TC2033 - Telescopic Cylinder TC 2033 Ball

€320.91

(Excl. VAT)

Price

(Excl. VAT)

€320.91

Product Description

The Di Natale-Bertelli TC2033 is a genuine single-acting telescopic cylinder designed for robust performance in agricultural and industrial dump applications. Featuring a 1000mm stroke and a 3-stage design, this cylinder ensures efficient lifting and lowering operations. It is equipped with a 25.4mm (1 inch) ball joint for flexible mounting and has an 80mm outer diameter. With a closed length of 500mm and a weight of 10.5 kg, the TC2033 offers reliable and durable functionality.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
683 mm
Weight
16,5 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629

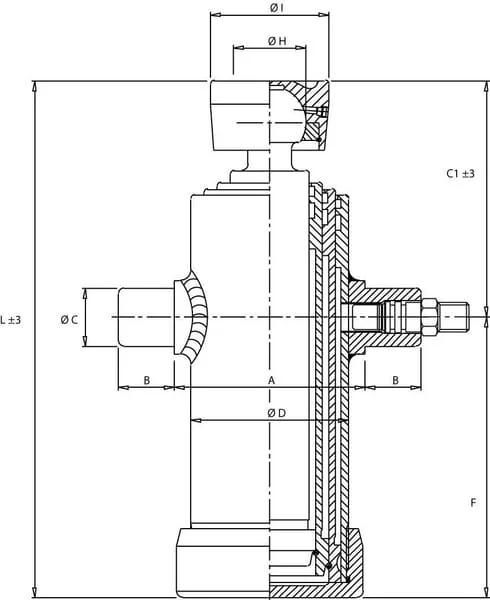

LMin. length
382 mm
Oil capacity
2,2 l
Max. capacity
5 t
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
115 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
112 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
142 mm
FMounting hole to swivel tap distance
240 mm
HMounting hole diameter - rod connection
45 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
