Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball
Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball

Di Natale Bertelli - TC4041 - Telescopic Cylinder Ball

€611.01

(Excl. VAT)

Price

(Excl. VAT)

€611.01

Product Description

The Di Natale-Bertelli TC4041 is a genuine single-acting telescopic hydraulic cylinder featuring a ball joint mounting. This robust cylinder has 3 extensions, a 40mm rod diameter, and an 80mm cylinder diameter. It provides a 700mm stroke, with a closed length of 410mm and an extended length of 1810mm. Designed for a maximum pressure of 200 bar, it requires 2.2 liters of oil and weighs 10.5 kg, ensuring reliable performance in demanding agricultural and industrial applications.
Di Natale Bertelli

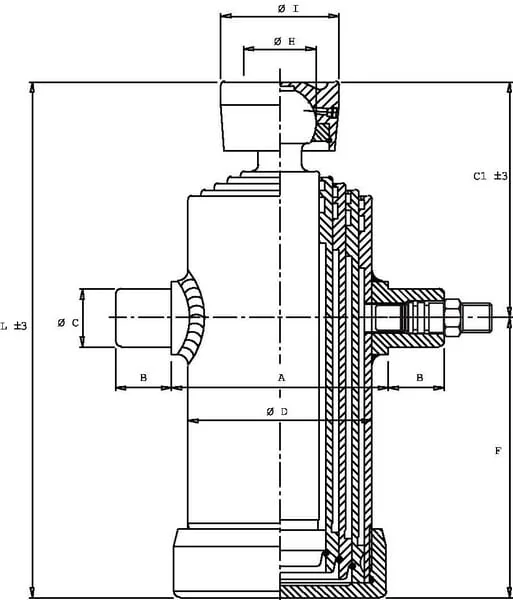

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
1040 mm
Weight
46 kg
Properties
Unpainted Low installation dimensions Excellent running properties Long service life
DIN standard
1629
LMin. length
440 mm
Oil capacity
8,3 l
Max. capacity
14 t
Number of stages
4
Sealing material
Polyurethane
Stage 1 diameter
68 mm
Stage 2 diameter
88 mm
Stage 3 diameter
107 mm
Stage 4 diameter
126 mm
Application range
Trailer tipping cylinder Vehicle construction
Cylinder material
Steel S355J2+N
DOutside diameter
152 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
45 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
45 mm
Max. capacity - stage 2
10,9 t
Max. capacity - stage 3
16,1 t
Max. capacity - stage 4
22,4 t
Max. capacity at 180 bar
22,4 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
AMin. mounting holes distance
175 mm
Mounting type - rod connection
Ball
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
95 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
162 mm
FMounting hole to swivel tap distance
278 mm
HMounting hole diameter - rod connection
55 mm
Mounting hole diameter - cylinder connection
45 mm
Manufacturer
Di Natale-Bertelli
