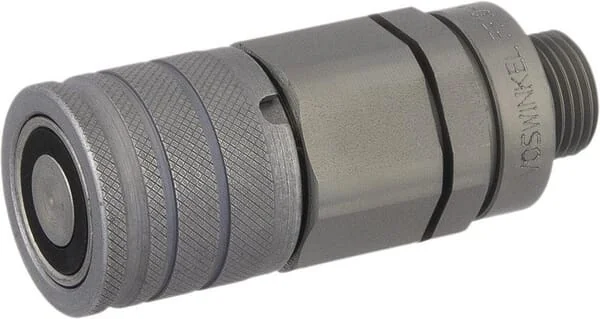

DNP - SKVF10L18 - QR Coupling Female

SKU: dnp-skvf10l18

DNP - SKVF10L18 - QR Coupling Female

€29.38€25.11 (Excl. VAT)

RRP:€40.79
Save €11.41

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€29.38

Brand
DNP
Part Numbers
SKVF10L18
Unit
Each
Shape
Straight - 2 connection sides
Details
One-handed coupling With special flat valve Protected against accidental decoupling
Benefits
User-friendly Low leakage No air pockets during coupling
Material
Steel
Body size
10 mm
Size code
BG 2
Properties
Locks on both sides Utmost corrosion resistance
ISO standard
16028

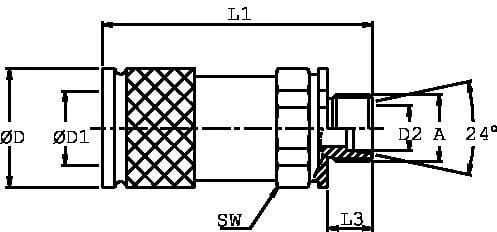

Total length
72 mm
Seal material
Nitrile rubber [NBR] Teflon (PTFE)
Outside diameter
32 mm
Working pressure
250 BAR
Application range
Construction and agricultural machines Hydraulic tools Applications in sensitive environments Mineral oil-based fluids
Surface treatment
Zinc Nickel
Connection 2, type
Thread
Connection no 1 type
Quick coupling
Connection 2, diameter
12 mm
Max working temperature
100 °C
Connection no 1 diameter
20 mm
Min. working temperature
-30 °C
Connection 2, thread type
Metric
Connectable under pressure
No
Connection 2, thread pitch
1.50 mm
Connection 2, thread diameter
M18
Connection no 1 type - male/female
Male
Manufacturer
DNP

One-handed coupling With special flat valve Protected against accidental decoupling
DNP
Dnp supplies spare parts and wear components for agricultural machinery maintenance. The brand focuses on high-quality replacement parts for tractors, combines, and tillage equipment. Its catalog includes filters, bearings, and cutting blades designed for extended service life. Shop more than 570 genuine Dnp spare parts.
