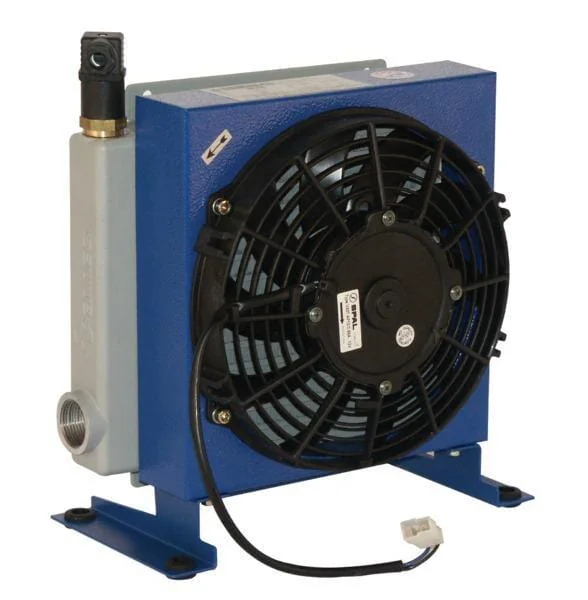

Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01
Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01
Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01
Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01
Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01
Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping

Pay Securely with

Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01

Emmegi - OK2015K01201 - Emmegi Oil Cooler (230V) 38-50°C 2015K-01-2-01

€330.21

(Excl. VAT)

Price

(Excl. VAT)

€330.21

Product Description

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 192 genuine Emmegi spare parts.

Product Details

Brand
Emmegi
Pros
Compact build-in Complete unit Increased efficiency Long component service life
Unit
Each
Depth
155 mm
Weight
7 kg
Includes
Aluminium radiator Support Impeller / electric motor, voltage depends on version Temperature switch Connector for connecting temperature switch/DC motor
Properties
Coolers are equipped with thermostats (38-50ºC) as standard Motor is switched by relay
Consists of
Aluminium cooler Support Fan/electric motor, voltage depends on version 40-48ºC temperature switch Plug for connecting temperature switch/DC motor
Noise level
68 dB(A)
Nominal voltage
230 V
Product details
Temperature switch 38-50°C Maximum temperature 120°C The motor must be switched via a relay
Insulation class
44
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers are fitted with a thermostat 38-50°C as standard. A controlled oil temperature increases the efficiency and lifetime of components in the system.
Application range
For heat exchange between oil and cooling air in hydraulic systems Improves heat exchange between oil and environment
Max. working flow
70 l/min
Fan outside diameter
200 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Connection thread diameter
1 Inch
Thermostat working temperature
38 - 50
Manufacturer
Emmegi
