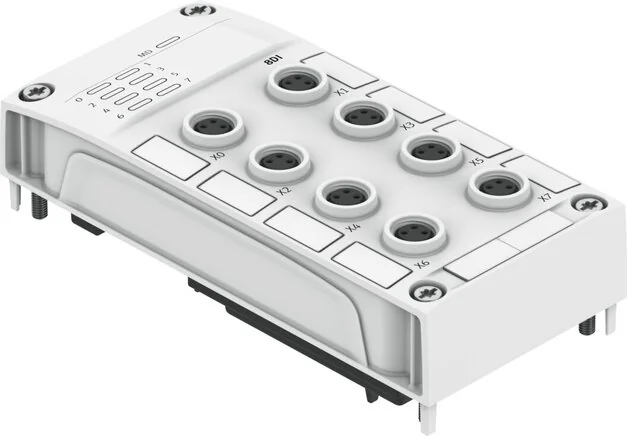

Festo - CPX-AP-A-8DI-M8-3P-8129103 - Digital Input Module

SKU: festo-cpx-ap-a-8di-m8-3p-8129103

Browse all parts
Festo - CPX-AP-A-8DI-M8-3P-8129103 - Digital Input Module

€185.91€158.90 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€185.91

Brand
Festo
Switch Level
Signal 1: >= 11 V
Material Note
phosphorsäureesterfrei
Cover Material
PBT reinforced
Fastening Type
Permanently screwed
O-ring Material
FPM
Quantity Inputs
8
Screws Material
Nickel-plated steel
Max. Line Length
30 m Eingänge
Protection Class
III
Shock Resistance
Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27
Channel Parameter
Eingangsentprellzeit
Diagnosis Via LED
Status pro Kanal
Relative Humidity
Not condensing
Dimensions W x L x H
50,1 mm x 107,3 mm x 57,5 mm
Oscillation Strength
Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6
Pitch Dimension (mm)
50,1
Installation Position
arbitrary
Max. Setup Height (m)
3.500
Over-voltage Category
II
LABS (PWIS) Conformity
VDMA24364-B2-L
Switching Logic Inputs
3-Drahtsensoren nach IEC 61131-2
Degree Of Contamination
2
Nominal Altitude Of Use
<= 2000 m ASL (> 79,5 kPa)
Ambient Temperature (°C)
-20 to 50
Bearing Temperature (°C)
-20 to 70
Fire Inspection, Material
UL94 V-0 (Gehäuse)
Input Debouncing Time (ms)
20
Max. Address Volume, Inputs
1
Reverse Polarity Protection
yes
Characteristic Curves Inputs
to IEC 61131-2 type 3
Power Blackout Bridging (ms)
10
Corrosion Resistance Class KBK
1 - low corrosion stress
Communication Interface, Protocol
AP
Max. Power Supply Per Channel (A)
0.5
Diagnostics Per Internal Communication
Unterspannung Elektronik/Sensoren
Electrical Connection: Input, Function
Digital input
Fuse Protection Of Inputs (Short Circuit)
Internal electronic fuse Per module
Electrical Connection: Input, Connection Type
8x socket
Max. Cumulative Current Inputs Per Module (A)
1,8
Electrical Isolation Of Inputs Between Channels
no
Permitted Voltage Oscillations Electronics/sensors
± 25 %
Electrical Connection: Input, Connection Technology
M8x1 A coded to EN 61076-2-104
Behaviour After End Of Overload Of The Sensor Supply
Automatische Wiederkehr
Electrical Connection: Input, Number Of Pins / Wires
3
Nominal Operating Voltage DC Electronics / Sensor (V)
24
Intrinsic Power Input Operating Voltage Electronics/sensors
typisch 40 mA
Electrical Isolation Of Inputs Between Channel - Internal Communication
yes
Manufacturer
Festo
