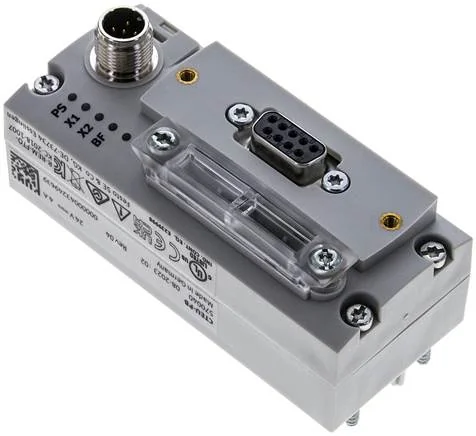

Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
RCM mark, c UL us - Listed (OL)
Fastening Type
auf Elektrik-Anschaltung, auf Elektrik-Anschlussplatte
Parameterising
Failsafe-Reaktion, Diagnoseverhalten
Operating Element
DIL switch
Fieldbus Interface
PROFIBUS
Emergency message, System status via diagnosis test
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
LABS (PWIS) Conformity
optional connection technology with accessories:, plug/socket M12x1 B-coded, 5-pin, Protection Class IP65
LED Display Bus Specific
BF: Bus error
Voltage Supply, Function
Electronics and load
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Fieldbus Interface, Report
PROFIBUS DP
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Voltage Supply, Connection Type
Plug
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
16
Fieldbus Interface, Connection Type
socket / container / ….
Information About Protection Category
in assembled condition, unused connection closed
Voltage Supply, Connection Technology
M12x1 A coded to EN 61076-2-101
Voltage Supply, Number Of Poles/wires
5
Fieldbus Interface, Connection Technology
Sub-D
Fieldbus Interface, Galvanically Separated
yes
Fieldbus Interface, Number Of Pins / Wires
9
Intrinsic Power Input At Operating Voltage
Type 100 mA
UKCA Marking (See Declaration Of Conformity)
9.6 kbit/s, 19.2 kbit/s, 93.75 kbit/s, 187.5 kbit/s, 500 kbit/s, 1.5 Mbit/s, 12 Mbit/s
Fieldbus Interface, Galvanically Separated (A)
4
Intern Power Consumption Nominal Operating Voltage
GSD file
