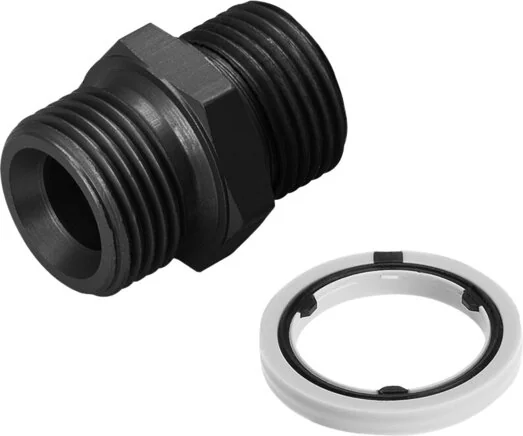

Festo - E-G1/4-1/4NPT-9631 - Double Nipple

SKU: festo-e-g1-4-1-4npt-9631

Browse all parts
Festo - E-G1/4-1/4NPT-9631 - Double Nipple

€5.96€5.09 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€5.96

Brand
Festo
Material Note
RoHs compliant
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Nominal Width (mm)
7,95
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Pneumatic Connection 1
G1/4
Pneumatic Connection 2
1/4 NPT
Ambient Temperature (°C)
-10 to 60
Corrosion Resistance Class KBK
1 - low corrosion stress
Nominal Tightening Torque (Nm)
9,05
Note On Operating And Control Medium
Oiled operation possible
Tolerance To Nominal Tightening Torque
± 20 %
Max. Tightening Torque Pneumatic Connection 1 (Nm)
11
Max. Tightening Torque Pneumatic Connection 2 (Nm)
12
Operating Pressure Complete Temperature Range (bar)
-0.95 to 10
EAN
4052568303440
Manufacturer
Festo
