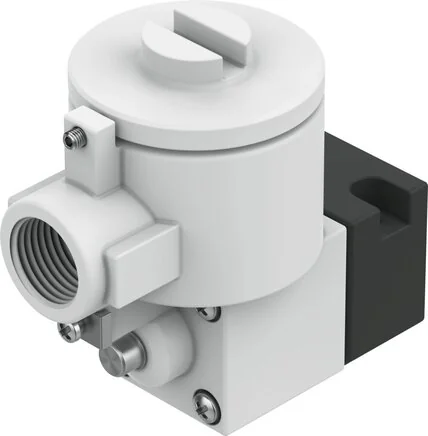

Festo - MGXDH-3/2-1.2-230AC-KS-8118344 - Pilot Valve

SKU: festo-mgxdh-3-2-1-2-230ac-ks-8118344

Browse all parts
Festo - MGXDH-3/2-1.2-230AC-KS-8118344 - Pilot Valve

€418.43€357.63 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€418.43

Brand
Festo
Reset Mode
Mechanical spring
Material Note
RoHs compliant
Power-on Time
100%
Actuation Type
Electrical
Fastening Type
CNOMO
Flow Direction
Not reversible
Valve Function
3/2 closed monostable
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Certification Body
21-GA4BO-0069X
Construction Set Up
Switch on valve
Protection Category
IP66
Hand Assist Actuation
Ratcheting
Ex Ambient Temperature
-65°C to +55°C T3
LABS (PWIS) Conformity
VDMA24364-Zone III
Operating Pressure (MPa)
-0,09 to 0,8
Ambient Temperature (°C)
-20 to 80
Coil Characteristic Value
230 V AC: 50/60 Hz, Anzugsleistung 9,5 VA, Halteleistung 6,0 VA
Insulation Material Class
H
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Ex Ignition Protection Type Gas
Ex db IIC T6...T3 Gb
Ex Ignition Protection Type Dust
Ex tb IIIC T85°C Db
Permitted Frequency Oscillations
± 10 %
Note On Operating And Control Medium
Oiled operation possible (required in further operations)
EAN
4052568580940
Manufacturer
Festo
