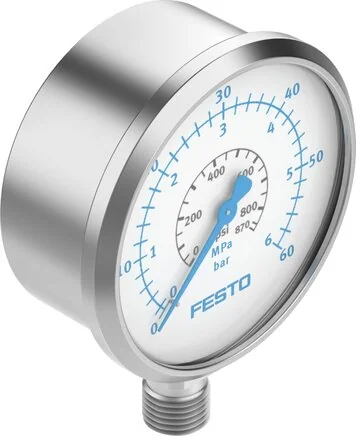

Festo - PAGL-HP3-63-60-G14-RC-1908519 - Pressure Gauge

€195.54€167.13 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€195.54

Brand
Festo
Scale
psi (innen)
Material Note
RoHs compliant
Stud Material
Brass
Fastening Type
pipe installation
Housing Colour
silver
Window Material
PS
Housing Material
Steel
Operating Medium
neutrale Flüssigkeiten
Connection Position
Radial lower
Construction Set Up
Pipe spring pressure gauge
Display Range (bar)
0 to 60
Protection Category
IP65
Complies To Standard
EN 837-1
Pneumatic Connection
G1/4
LABS (PWIS) Conformity
VDMA24364-B2-L
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0 to 6
Ambient Temperature (°C)
0 to 60
Bearing Temperature (°C)
-40 to 70
Factor Alternating Strain
0.66
Measurement Precision Class
1,6
Nominal Size Pressure Gauge
63
From Medium Contacting Materials
Brass
Note On Operating And Control Medium
kein Sauerstoff
EAN
4052568264307
Manufacturer
Festo
