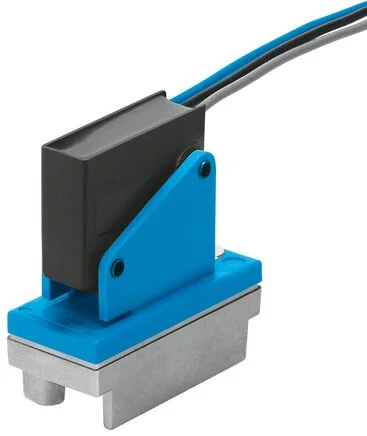

Festo - PE-1/8-1N-SW-6484 - PE Transducer

SKU: festo-pe-1-8-1n-sw-6484

Browse all parts
Festo - PE-1/8-1N-SW-6484 - PE Transducer

€213.75€182.69 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€213.75

Brand
Festo
Control Output
Contact
Fastening Type
With throughway bores
Setting Options
Fixed setting
Switch Function
Threshold value with fixed hysteresis
Cable Length (m)
0,5
Housing Material
VMQ (Silicone)
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Diaphragm Material
TPE-U(PU)
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric pressure converter
Protection Category
IP67
Complies To Standard
EN 60947-5-1
Pneumatic Connection
G1/8
Cable Sleeve Material
PVC
Electrical Connection
3 connection slots
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Degree Of Contamination
3
Insulation Voltage (kV)
2.000
Switch Contact Material
silver
Use Category Ohmic Load
DC-12
Medium Temperature (°C)
0 to 60
Operating Pressure (MPa)
0 to 0.8
Ambient Temperature (°C)
0 to 60
Minimum Load Current (mA)
100
Switch-on Point Max (bar)
2,00
Switch-off Point Min (bar)
0,50
Switching Element Function
changeover contact
Use Category Inductive Load
DC-13
Max. Overload Pressure (bar)
12
Max. Switching Frequency (Hz)
1
Operating Voltage Range AC (V)
12 to 250
Operating Voltage Range DC (V)
12 to 250
Electrical Connection: Material
Tin plated
Note On Operating And Control Medium
Oiled operation possible
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Electrical Connection 1, Connection Technology
Open end
EAN
4052568001230
Manufacturer
Festo
