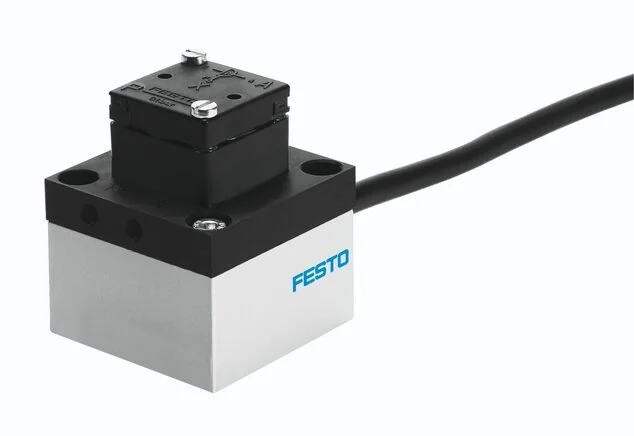

Festo - PE-VK-5.1-7451 - PE Transducer

SKU: festo-pe-vk-5-1-7451

Browse all parts
Festo - PE-VK-5.1-7451 - PE Transducer

€445.88€381.09 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€445.88

Brand
Festo
Permission
CCC
Control Output
Contact
Fastening Type
With throughway bores
Setting Options
Fixed setting
Switch Function
Threshold value with fixed hysteresis
Cable Length (m)
1
Housing Material
Anodised aluminium
Operating Medium
Compressed air to ISO 8573-1:2010 [7:-:-]
Measured Parameter
Relative pressure
Measurement Process
Pneumatic electric pressure converter
Protection Category
IP62
Complies To Standard
EN 60947-5-1
Pneumatic Connection
M5
Cable Sleeve Material
PVC
Electrical Connection
cable
Installation Position
arbitrary
Switch On Point (bar)
0,0005
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Switch Off Point (bar)
0,0001
Degree Of Contamination
3
Insulation Voltage (kV)
2.000
Use Category Ohmic Load
DC-12
Operating Pressure (MPa)
0 to 0,025
Ambient Temperature (°C)
-10 to 50
Switching Element Function
changeover contact
Use Category Inductive Load
DC-13
Max. Switch Off Voltage AC (V)
250
Max. Switch Off Voltage DC (V)
250
Note On Operating And Control Medium
Oiled operation not possible
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK Vorschriften für elektrische Betriebsmittel
CE Certificate (See Declaration Of Conformity)
to EU low voltage directive
Electrical Connection 1, Connection Technology
Open end
EAN
4052568001544
Manufacturer
Festo
