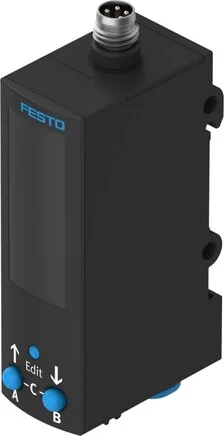

Festo - SDE3-V1Z-H-HQ4-2P-M8-540200 - Pressure Sensor

SKU: festo-sde3-v1z-h-hq4-2p-m8-540200

Browse all parts
Festo - SDE3-V1Z-H-HQ4-2P-M8-540200 - Pressure Sensor

€268.49€229.48 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€268.49

Brand
Festo
Permission
c UL us - Recognized (OL)
Display Type
Illuminating LCD
Material Note
RoHs compliant
Control Output
2xPNP
Fastening Type
With Slot rail
Setting Options
Teach-in
Switch Function
Freely programmable
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Tamper-proof Fuse
PIN code
Measured Parameter
Differential pressure
Accuracy In ± % FS
2
Measurement Process
Piezoresistive pressure sensor with display
Presentable Unit(s)
bar
Protection Category
IP65
Switch On Time (ms)
3
Pneumatic Connection
QS-4
Switch Off Time (ms)
3
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B1/B2-L
Display Range End Value
100
Overload Pressure (MPa)
0,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
Settings Range Hysteresis
0 to 90
Switching Element Function
Switchable
Switching Status Indicator
LCD yellow
Reverse Polarity Protection
for all electrical connections
Display Range Starting Value
0
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
15 to 30
Settings Range Threshold Value
0 to 100
Reproducibility Switching Value
0,3
From Medium Contacting Materials
PA reinforced
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Electrical Connection 1, Fastening Type
Screw lock
Electrical Connection 1, Connection Type
Plug
Pressure Measurement Range End Value (MPa)
-0,1
Electrical Connection 1, Connection Pattern
991171
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
M8x1, A coded to EN 61076-2-104
Electrical Connection 1, Number Of Pins / Wires
4
Pressure Measurement Range Starting Value (MPa)
0
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568178611
Manufacturer
Festo
