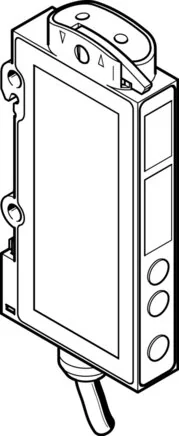

Festo - SOE4-FO-D-HF2-1PU-K-552801 - Light Guide Device

SKU: festo-soe4-fo-d-hf2-1pu-k-552801

Browse all parts
Festo - SOE4-FO-D-HF2-1PU-K-552801 - Light Guide Device

€282.38€241.35 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€282.38

Brand
Festo
Design
Block structure
Display
LED - display
0000 - 4093
Light Type
red
Permission
c UL us - Listed (OL)
Control Output
PNP
Fastening Type
With Slot rail
Timer Function
1 - 2000 ms
Analogue Output
0 - 10 V
Residual Ripple
10%
Setting Options
Teach-In über elektrischen Anschluss
Cable Length (m)
2
Housing Material
ABS
Voltage Drop (V)
2,4
Counter Influence
bis zu vier direkt nebeneinander montierten Geräten
Measured Parameter
Position
Measurement Process
Light guide device
Protection Category
IP64
Complies To Standard
EN 60947-5-2
Cable Sleeve Material
TPE-U(PUR)
Electrical Connection
cable
Installation Position
arbitrary
Measurement Principle
Optoelectronic
Empty Run Current (mA)
25
Insulation Voltage (V)
50
LABS (PWIS) Conformity
VDMA24364-B2-L
Max. Output Current (mA)
100
Max. Switching Frequency
High Distance Mode 125 Hz
Short Circuit Resistance
Cycling
Ambient Temperature (°C)
-20 to 60
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
Operation-readiness Display
LED green
Reverse Polarity Protection
for all electrical operating voltage connections
Corrosion Resistance Class KBK
4 - particularly severe corrosion stress
Operating Voltage Range DC (V)
10 to 30
Electrical Connection 1, Connection Type
cable
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Electrical Connection 1, Connection Technology
Open end
Electrical Connection 1, Number Of Pins / Wires
5
Ambient Temperature For Moving Cable Placements (°C)
-5 to 60
EAN
4052568194567
Manufacturer
Festo
