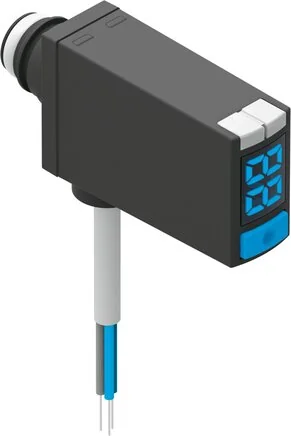

Festo - SPAE-B2R-PC10-PNLK-2.5K-8025979 - Pressure Sensor

SKU: festo-spae-b2r-pc10-pnlk-2-5k-8025979

Festo - SPAE-B2R-PC10-PNLK-2.5K-8025979 - Pressure Sensor

€134.50€114.96 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€134.50

Brand
Festo
Report
IO-Link
Permission
c UL us - Recognized (OL)
Display Type
2-stellig
Material Note
RoHs compliant
Control Output
PNP/NPN switchable
Fastening Type
Pin-type connection
Gasket Material
NBR
Setting Options
Via display and buttons
Switch Function
Freely programmable
Cable Length (m)
2,5
Housing Material
PA reinforced
IO-Link, Profile
Smart sensor profile
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Tamper-proof Fuse
PIN code
Certification Body
UL E322346
Measured Parameter
Relative pressure
Accuracy In ± % FS
1,5
IO-Link, Port Class
A
Measurement Process
Piezoresistive pressure sensor with display
Presentable Unit(s)
%FS
Protection Category
IP40
Switch On Time (ms)
1
Pneumatic Connection
Cartridge 10 mm
Resolution ADC (Bit)
10
Switch Off Time (ms)
1
Electrical Connection
Open end
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Display Range End Value
99
Overload Pressure (MPa)
0,5
Repeatability In ± %FS
0,3
Max. Output Current (mA)
100
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
yes
Ambient Temperature (°C)
0 to 50
IO-Link, Function Classes
Teach channel
IO-Link, Protocol Version
Device V 1.1
IO-Link, SIO Mode Support
yes
Switching Element Function
Switchable
Switching Status Indicator
LED yellow
IO-Link, Communication Mode
COM2 (38.4 kBaud)
IO-Link, Data Memory Needed
500
Reverse Polarity Protection
for all electrical connections
Display Range Starting Value
0
Corrosion Resistance Class KBK
2 - moderate corrosion stress
IO-Link, Process Data Width IN
2 Bytes
Operating Voltage Range DC (V)
18 to 30
Settings Range Threshold Value
1 to 98
IO-Link, Process Data Width OUT
0 Bytes
IO-Link, Minimum Cycle Time (ms)
3
IO-Link, Process Data Contents IN
2 bit BDC (Drucküberwachung)
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Pressure Measurement Range End Value (MPa)
0,1
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Pressure Measurement Range Starting Value (MPa)
-0,1
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568293840
Manufacturer
Festo
