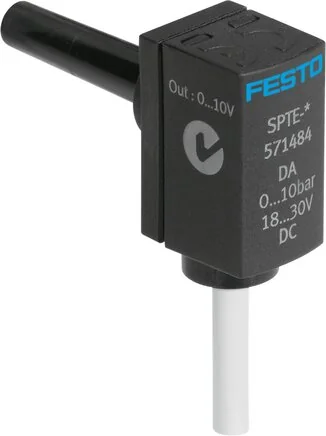

Festo - SPTE-P10R-S4-V-2.5K-571484 - Pressure Transmitter

SKU: festo-spte-p10r-s4-v-2-5k-571484

Browse all parts
Festo - SPTE-P10R-S4-V-2.5K-571484 - Pressure Transmitter

€69.37€59.29 (Excl. VAT)

Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€69.37

Brand
Festo
Permission
c UL us - Recognized (OL)
Material Note
RoHs compliant
Fastening Type
Pluggable
Rise Time (ms)
1
Analogue Output
0 - 10 V
Gasket Material
FPM
Cable Length (m)
2,5
Housing Material
PA reinforced
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Certification Body
UL E322346
Measured Parameter
Relative pressure
Accuracy In ± % FS
3
Measurement Process
Piezoresistive pressure sensor
Protection Category
IP40
Pneumatic Connection
Plug sleeve QS-4
Electrical Connection
Open end
Installation Position
arbitrary
LABS (PWIS) Conformity
VDMA24364-B2-L
Overload Pressure (MPa)
1,5
Repeatability In ± %FS
0,3
Medium Temperature (°C)
0 to 50
Short Circuit Resistance
for all electrical connections
Ambient Temperature (°C)
0 to 50
Reverse Polarity Protection
for all electrical connections
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Min. Load Resistance Voltage Output
15
Temperature Coefficient In ± %FS/K
0,05
Note On Operating And Control Medium
Oiled operation possible
Pressure Measurement Range End Value (MPa)
1,0
UKCA Marking (See Declaration Of Conformity)
nach UK RoHS Vorschriften
CE Certificate (See Declaration Of Conformity)
nach EU-RoHS-Richtlinie
Pressure Measurement Range Starting Value (MPa)
0
Suitability For The Production Of Li-ion Batteries
Geeignet für Batterieproduktion mit reduzierten Cu/Zn/Ni Werten (F1a)
Cleanroom Suitability, Measured According To ISO 14644-14
Klasse 4 nach ISO 14644-1
EAN
4052568101381
Manufacturer
Festo
