HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V

HELLA - 1GA 996 661-501 - LED-Worklight, Oval 100 Thermo Pro, 24/12V

€114.33

(Excl. VAT)

Price

(Excl. VAT)

€114.33

Product Description

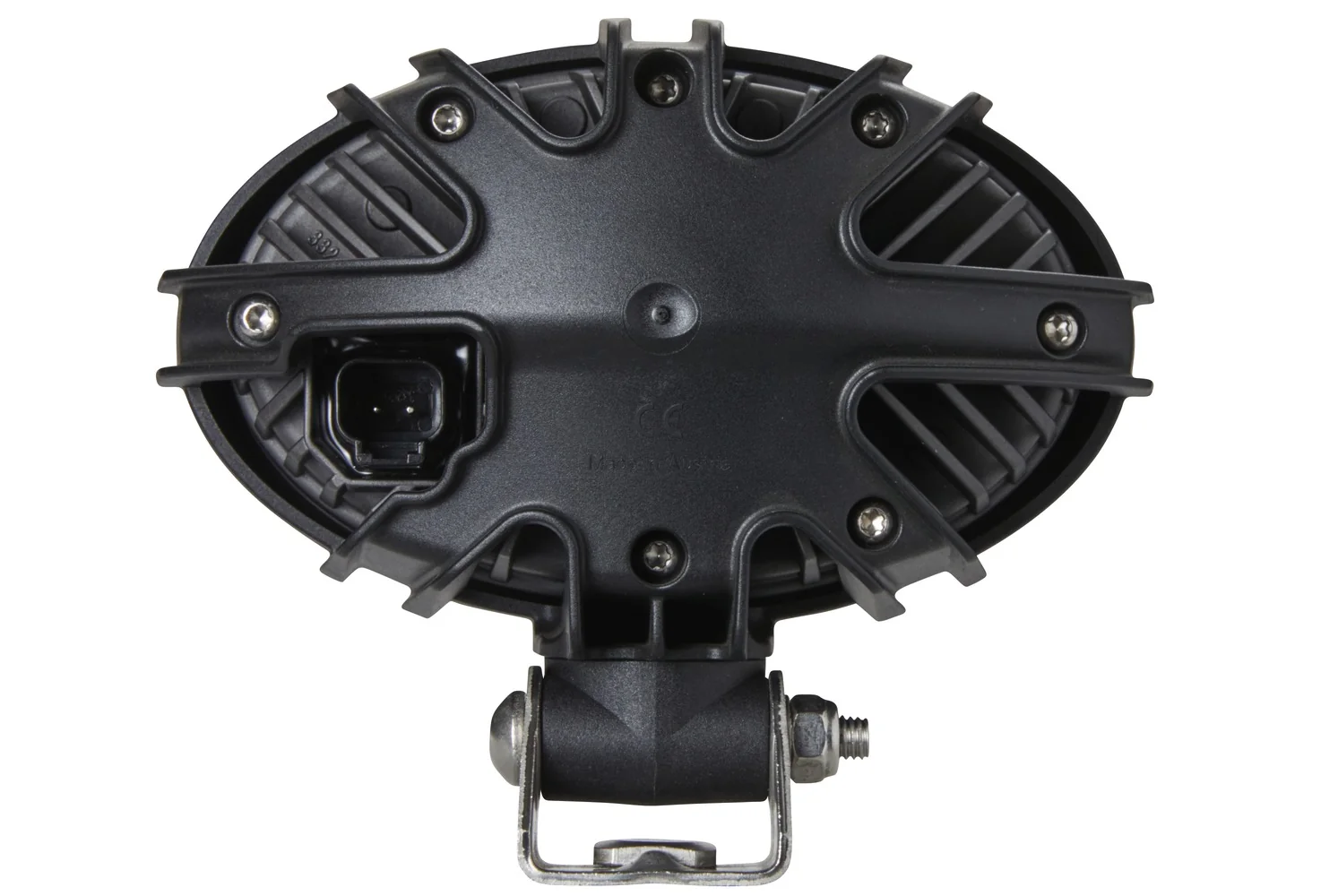

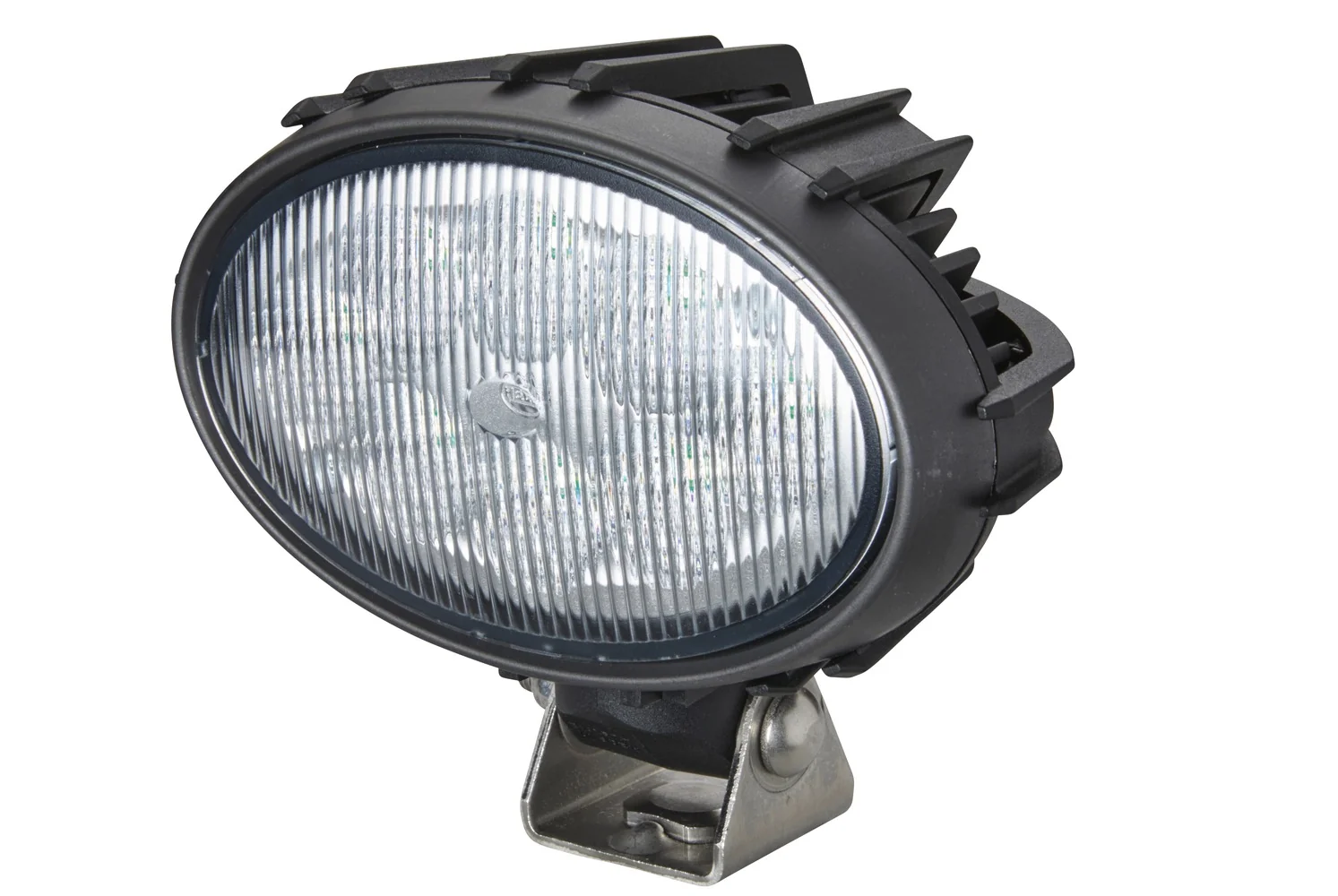

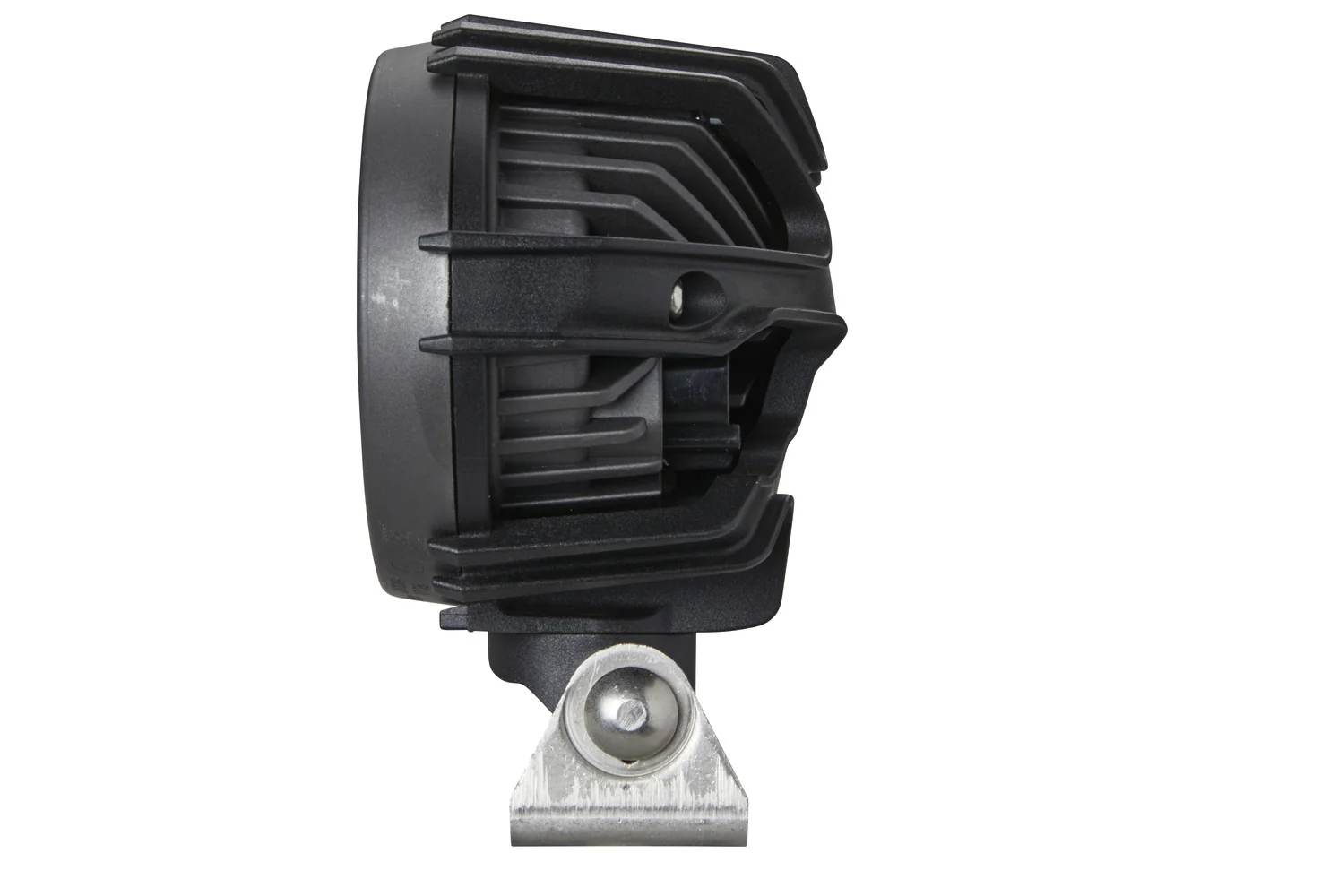

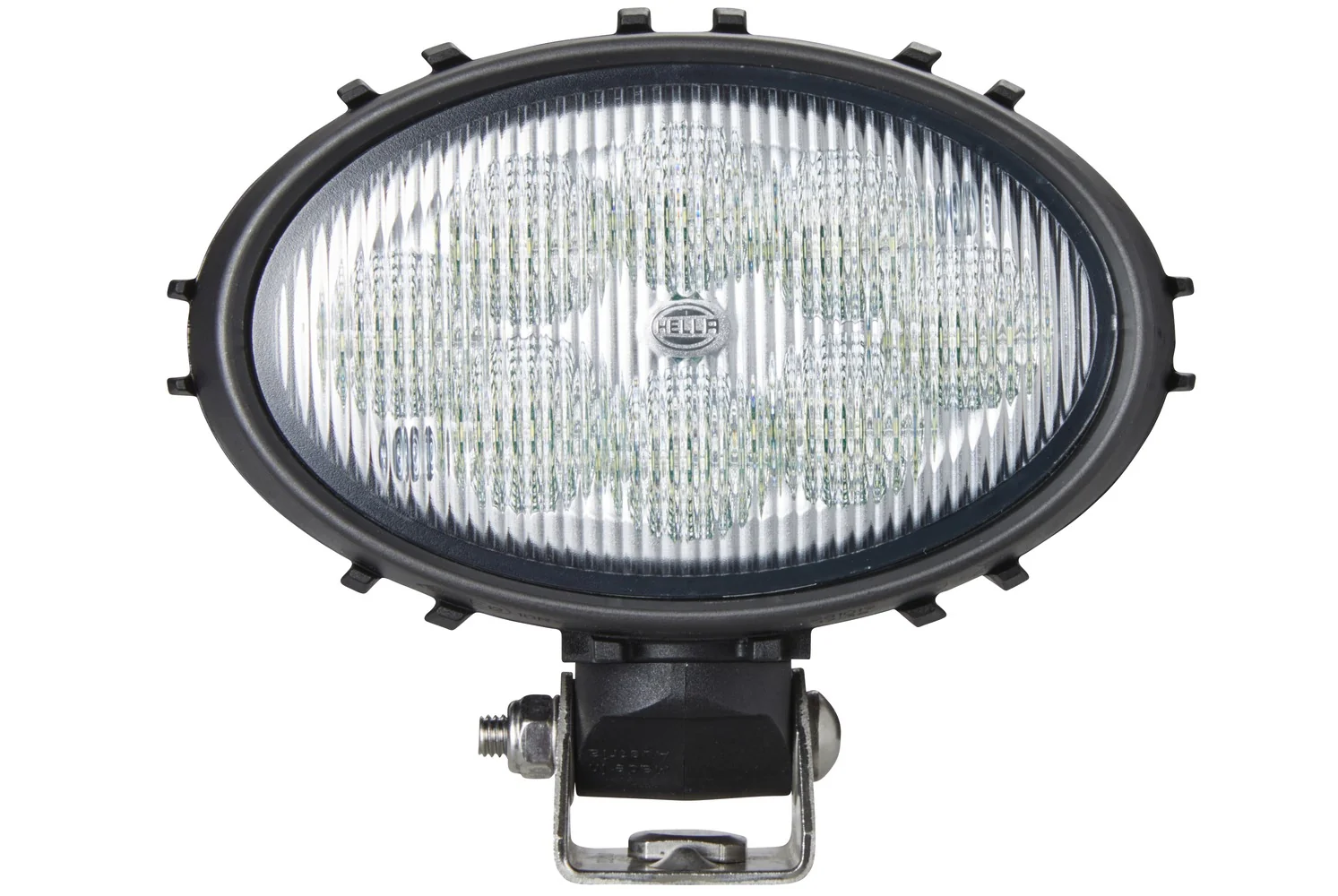

The Oval 100 LED Thermo Pro is the latest version of the already extensive Oval 100 worklight series. The new innovative plastic housing offers complete corrosion resistance as well as many new mounting options. For the first time, the Oval 100 LED is also available with a lateral swivel joint attachment, which offers additional adjustment options for mounting. The heat-conducting plastic housing has cooling fins on the back to ensure the necessary heat dissipation of the 8 high-power LEDs. Thanks to its light output of 1,700 lumens, the Oval 100 LED is ideal for replacing old halogen worklights (H3, H9) - and that with only 25 watts of energy consumption. The specially developed multi-faceted reflector guarantees homogeneous illumination of the working area. The Oval 100 LED Thermo Pro can be mounted upright (0°), suspended (180°) and in the swivel joint version also sideways (90°). At 6,500 Kelvin, the light is similar to daylight. This causes colours to distinguish themselves more clearly in the dark than in the yellowish light of halogen bulbs, making it much easier for the human eye to perceive the senses and prevent eye fatigue. The plastic housing is hermetically sealed and thus watertight, submersible and resistant to high-pressure cleaning (IP6K9K, IP6K8). The integrated electronics protect the unit in case of reverse polarity and ensure constant brightness even with fluctuating operating voltages from 9 to 33 volts. Temperature sensors protect the worklight from overheating to ensure a long service life of the LEDs and safe working at night.
Hella
Hella is a supplier of lighting and electronic systems for agricultural and off-road vehicles. The brand provides LED work lights, signal lamps, and electrical components for tractors and machinery. Its products are designed for durability and visibility in harsh farming environments. Shop more than 6,960 genuine Hella spare parts.

Product Details

Brand
HELLA
Plug
DEUTSCH Plug
Depth
83 mm
Width
166 mm
Height
146 mm
Voltage
12 V / 24 V
Lamp Type
LED
Housing Type
Synthetic Material Housing
Light Design
LED
Assembly Note
Assembly By Qualified Personnel Required
Luminous Flux
1700 lm
Mounting Type
Mounting / Bolted
Fastening Type
Swivelling Mounting Bracket
Housing Colour
Black
Number of LEDs
8
Power Consumption
25 W
Colour Temperature
6500 K
Light Distribution
Short-Range Illumination
Diffusing Lens Type
Patterned Diffusing Lens
Fulfils ECE Standard
R10
Protection Type (IP Code)
IP6K7 / IP6K9K
Supplementary Article/Supplementary Info 2
With Swivel Joint Base
Manufacturer
HELLA
