INA FAG - KR30PPA - INA Stud Type Track Roller
INA FAG - KR30PPA - INA Stud Type Track Roller
INA FAG - KR30PPA - INA Stud Type Track Roller
INA FAG - KR30PPA - INA Stud Type Track Roller

In stock - ready to ship

Order now for delivery between 12 May and 15 May
Free shipping on orders over €60

Pay Securely with

INA FAG - KR30PPA - INA Stud Type Track Roller

INA FAG - KR30PPA - INA Stud Type Track Roller

€50.47

(Excl. VAT)

Price

(Excl. VAT)

€50.47

Product Description

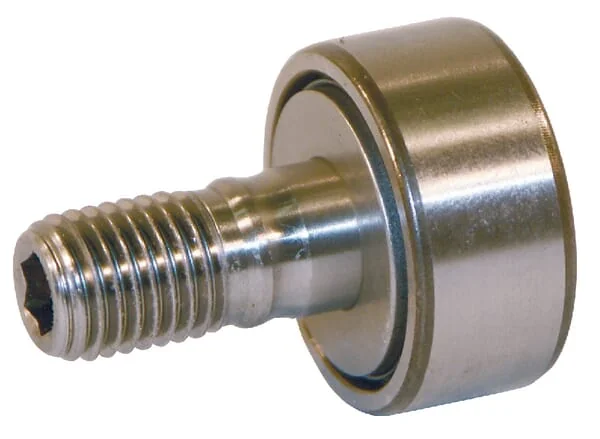

The INA KR30-PP-A is a high-quality stud type track roller, manufactured by INA (Schaeffler), designed for robust industrial applications. This roller features an outer diameter of 30mm and a width of the outer ring of 14mm. The stud has an overall length of 40mm, a diameter of 12mm, and an M12x1.5 thread. It incorporates PP lip seals on both sides for enhanced protection against contaminants and utilizes a full complement cylindrical roller set for reliable performance. The design includes an eccentric collar and axial guidance of the outer ring on the stud, with a lubrication hole for easy maintenance.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
CWidth
14 mm
Benefits
Can absorb high radial loads No forces on edges with uneven standing
Properties
Solid shaft with guide bore With axial guidance via driving discs NMT add-on: equipped with a nut
BTotal length
40 mm
B2Shaft length
25 mm
Inside diameter
12 mm
d1Shaft diameter
12 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
30 mm
Bearing model type
Stud type track rollers
GMounting thread pitch
1.50 mm
Max working temperature
100 °C
Min working temperature
-30 °C
IGMounting thread length
13 mm
GMounting thread diameter
M12
Manufacturer
INA/FAG
