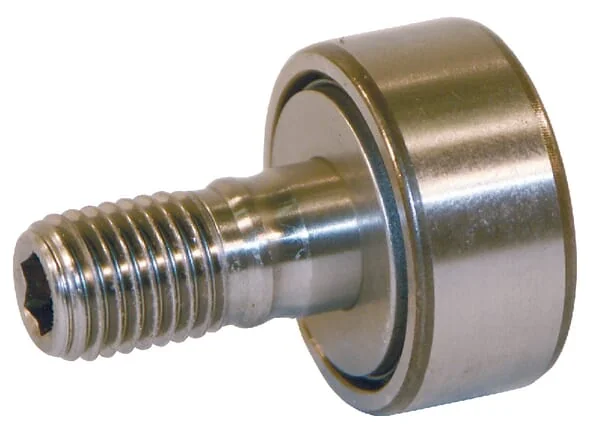

INA FAG - KRV32PPA - Stud Type Track Roller

OEM Supplier

SKU: ina-fag-krv32ppa

INA FAG - KRV32PPA - Stud Type Track Roller

€57.44

(excl. VAT)

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€57.44

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
krv32ppa
Unit
Each
CWidth
14 mm
Weight
0,111 kg
Sealing
2RS
Properties
Thick-walled outer ring with profiled lateral surface Solid inner part with journal Fitted with thread Driving disc Single or two-row sets of cylinder rollers or needles
Regreasable
Yes
Rows number
1
BTotal length
40 mm
B1Shaft length
25 mm
Technical info
Outer ring of lateral surface is annular (R500) Temperature range: -30°C to +140°C Cage is full complement With axial guidance via driving disc
Inside diameter
12 mm
Outer ring width
14 mm
d1Shaft diameter
12 mm
Application range
Packaging machines Transport systems Roll-up doors Roller tensioners
DOutside diameter
32 mm
Bearing model type
Stud type track rollers
Mounting thread pitch
1.50 mm
Max working temperature
100 °C
Min working temperature
-30 °C
G1Mounting thread length
13 mm
GMounting thread diameter
M12
EAN
4012802427882
Manufacturer
INA/FAG
