Home
Maintenance & Wear Parts
Bearings
Pillow Blocks

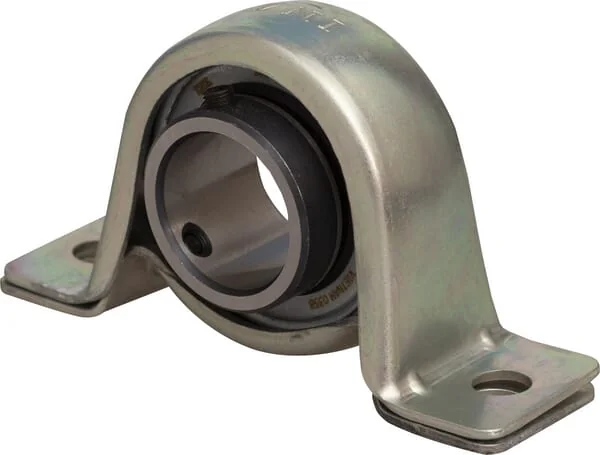

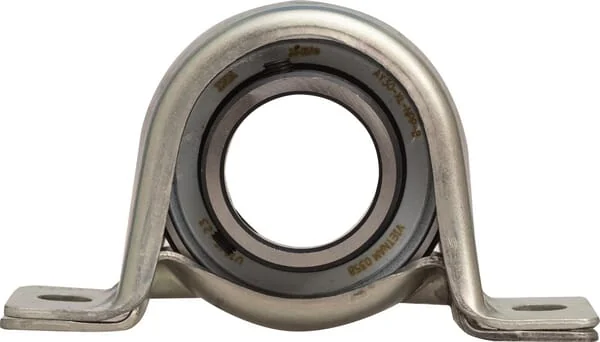

INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit

INA FAG - PBY30 - INA Sheet Steel Pillow Block Unit

€28.59

(Excl. VAT)

Price

(Excl. VAT)

€28.59

Product Description

The INA PBY30 is a high-quality sheet steel pillow block unit designed for reliable performance in various industrial and agricultural machinery. Featuring a 30mm bore diameter, this robust unit integrates a GRAE30NPPB bearing within a durable PBY30 housing. It offers a dynamic load rating of 14.5 kN and a static load rating of 7.8 kN, suitable for demanding applications. The unit has an overall length of 130mm, width of 38mm, and height of 70mm, with mounting hole centers at 105mm. Its permissible operating temperature range is -20 to +120 °C, ensuring versatility across different environments.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Housing type
Pillow block
HTotal height
66,1 mm
Housing width
38 mm
WTotal length
117,5 mm
Technical info
Tendon bearing. Spherical lateral surface of the outer ring. 2 x grubscrews in the inner ring. Inner ring extends. P-seal on one side.
CFlange thickness
16 mm
Bearing inside diameter
30 mm
Mounting holes distance
95 mm
AShaft vertical distance
33,3 mm
Basic radial load static
11300 N
Basic radial load dynamic
19500 N
ØKMounting holes diameter
11,5 mm
Manufacturer
INA/FAG

Similar items you might like

  • INA FAG

    INA FAG - PBY30XL - Sheet Steel Pillow Block Unit

    INA FAG

    €28.58

  • INA FAG

    INA FAG - PBY15XL - INA Sheet Steel Pillow Block Unit

    INA FAG

    €19.39

  • INA FAG

    INA FAG - PCF20XL - Flanged Bearing Unit

    INA FAG

    €27.21

  • INA FAG

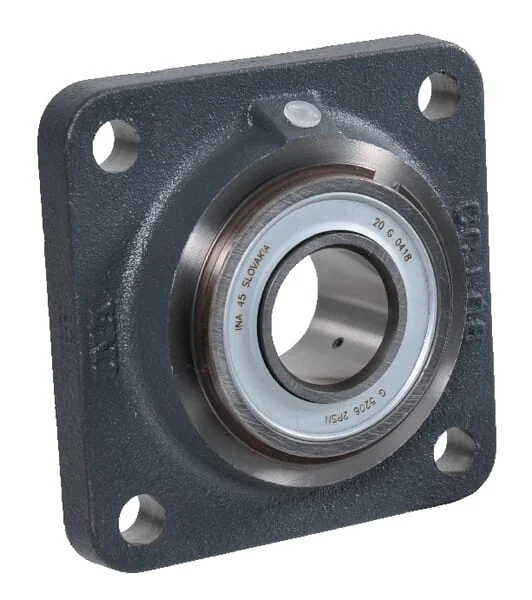

    INA FAG - PCCJ40 - Square Flange Bearing Complete
