INA FAG - PCJY12 - Flanged Bearing Unit

OEM Supplier

SKU: ina-fag-pcjy12

INA FAG - PCJY12 - Flanged Bearing Unit

€23.66

(excl. VAT)

In stock - ready to ship

Ships within 96 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€23.66

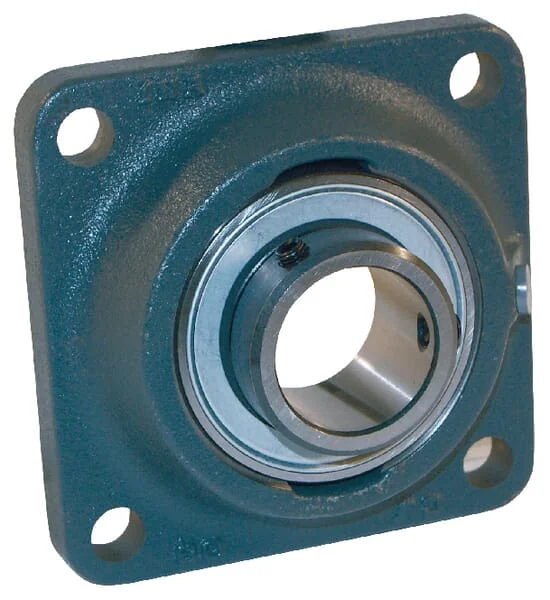

The INA PCJY12 is a robust four-bolt flanged bearing unit featuring a durable cast iron housing and a spherical outer ring bearing insert. Designed for reliable performance, it includes a wide inner ring with an eccentric locking collar for secure shaft attachment. This genuine INA unit has a 12mm bore diameter and is suitable for various industrial applications where the shaft rotates in one direction.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
pcjy12
Bore Diameter (mm)
12
Housing Type
Four-bolt flanged
Housing Material
Cast iron
Bearing Insert Type
Spherical outer ring
Locking Mechanism
Eccentric locking collar
Flange Width (mm)
86
Overall Height (mm)
62
Bearing Insert Width (mm)
31
Bolt Hole Spacing (mm)
70
Mounting Hole Diameter (mm)
10
Weight (kg)
0.55
Housing Part Number
PCJ12
Bearing Insert Part Number
YAR203-2F
Quality
OEM Supplier
Manufacturer
ina-fag
