INA FAG - PHE25 - Bearing Block PHE 25
OEM Supplier
SKU: ina-fag-phe25




€41.09
(excl. VAT)In stock - ready to ship
Ships within 96 hours
Shipping fee: €6.00 excl. VAT
Pay Securely with

INA FAG - PHE25 - Bearing Block PHE 25
€41.09
(Excl. VAT)
Price
(Excl. VAT)
€41.09

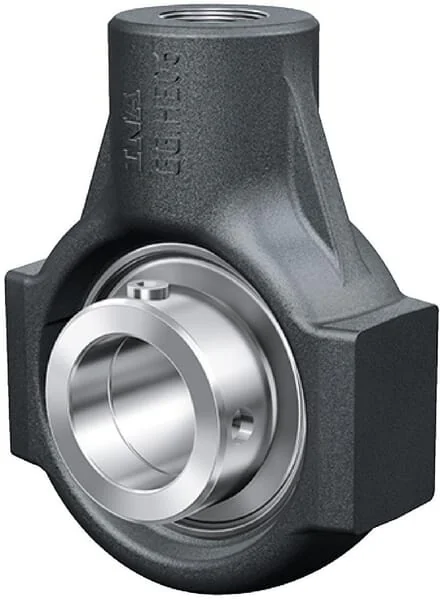

The INA-FAG PHE25 is a robust Plummer block housing designed for reliable performance in various industrial applications. Manufactured by INA-FAG, a brand of Schaeffler, this bearing block ensures secure mounting and protection for bearings, contributing to the longevity and efficiency of machinery. It is engineered for durability and precision, making it suitable for demanding operational environments.
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components.
The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments.
At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao.
INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.
Product Details
Brand
Part Numbers
phe25
Unit
Each
Weight
0,69 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total height
70 mm
ATotal length
99 mm
MHousing width
70 mm
Flange thickness
20 mm
WGuide groove length
38 mm
HShaft vertical distance
64 mm
K1Mounting thread length
22 mm
Mounting thread diameter
M20
dBearing inside diameter
25 mm
LBearing inner ring width
31 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
23,5 mm
EAN
4012802810707
Manufacturer
INA/FAG
