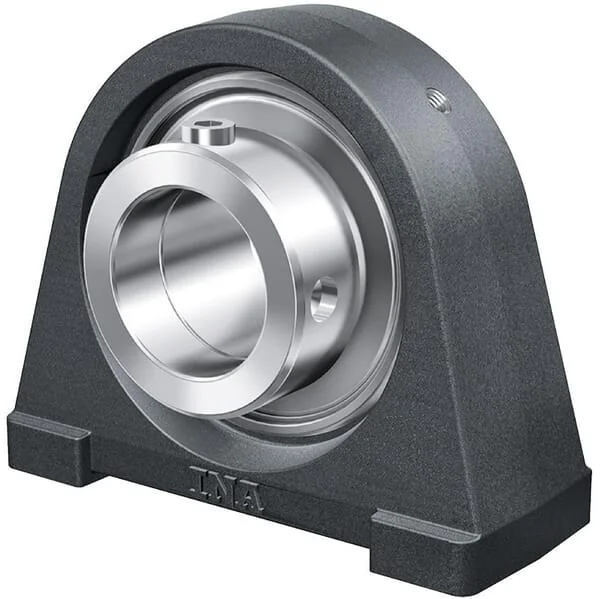

INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts
INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts
INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts
INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts
INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping on orders over €60

Pay Securely with

INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts

INA FAG - PSHEY30 - Bearing Block Standing Diameter 30 with Bolts

€41.32

(Excl. VAT)

Price

(Excl. VAT)

€41.32

Product Description

The INA-FAG PSHEY30 is a high-quality pillow block bearing unit featuring a robust cast iron housing and a 30mm bore. It includes an INA YEL206-2F bearing insert with RSR seals, designed for reliable performance in various industrial and agricultural applications. This unit is secured with an eccentric locking collar, offering easy installation and maintenance. Key dimensions include a length of 127mm, width of 42mm, and height of 108mm, with bolt hole centers at 95mm. It has a dynamic load rating of 19.5 kN and a static load rating of 11.2 kN.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
0,88 kg
Benefits
Low space requirement
Properties
• Inner bearing has one-sided extended inner ring with 2 adjusting screws Can be subsequently lubricated
Total width
40 mm
Housing type
Pillow block - short
Total length
98 mm
HTotal height
82 mm
BHousing width
40 mm
Mounting holes distance
76,2 mm
Mounting thread diameter
M10
dBearing inside diameter
30 mm
Grease nipple thread diameter
M6
OBearing balls distance to mounting surface
21 mm
Manufacturer
INA/FAG
