Maintenance & Wear Parts

Bearing Housings

INA FAG - PTUE30 - Bearing Block

INA FAG - PTUE30 - Bearing Block

INA FAG - PTUE30 - Bearing Block

INA FAG - PTUE30 - Bearing Block

INA FAG - PTUE30 - Bearing Block

Number of products

In stock - ready to ship

Order now for delivery between 17 July and 21 July

Free shipping on orders over €60

Pay Securely with

INA FAG - PTUE30 - Bearing Block

INA FAG - PTUE30 - Bearing Block

€47.11

(Excl. VAT)

Price

(Excl. VAT)

€47.11

Number of products

Product Description

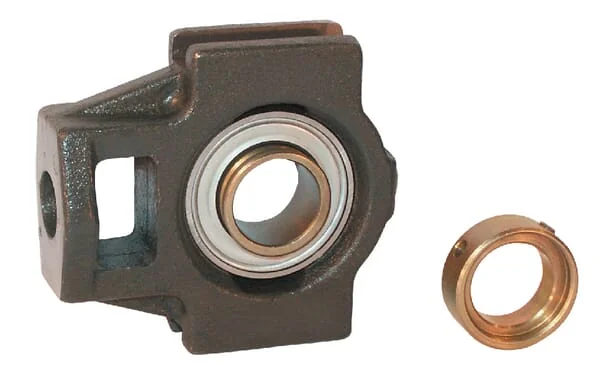

The INA-FAG PTUE30 is a robust cast iron plummer block bearing housing designed to accommodate bearings suitable for 30mm diameter shafts. This durable housing provides secure mounting and protection for bearings in various industrial and agricultural applications. It features a total length of 160mm, a width of 50mm, and an overall height of 95mm, with mounting holes spaced 120mm apart. Constructed from high-quality cast iron, the PTUE30 ensures reliable performance and longevity.

INA FAG

Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Product Details

Brand

Part Numbers

ptue30

Unit

Each

Weight

1,19 kg

Properties

Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated

Consists of

• Bearing block Clamp ring

Total width

102 mm

ATotal length

114,5 mm

VHousing width

102 mm

MHousing length

89 mm

DGuide groove width

12 mm

WGuide groove length

57 mm

Mounting holes distance

30 mm

HShaft vertical distance

70 mm

K1Mounting thread length

36,5 mm

KMounting holes diameter

22 mm

dBearing inside diameter

30 mm

LBearing inner ring width

35,7 mm

Grease nipple thread diameter

M6

Locking ring outside diameter

44 mm

OBearing balls distance to mounting surface

26,7 mm

EAN

4054372273247

Manufacturer

INA/FAG
