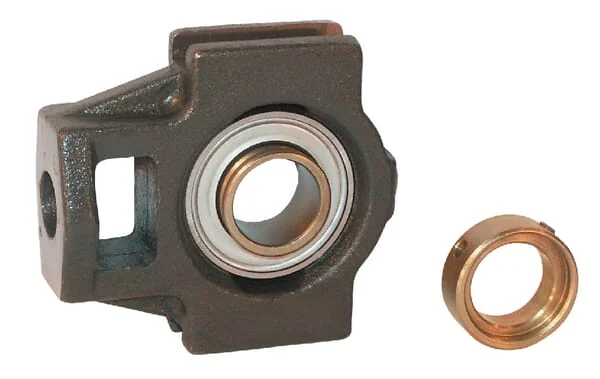

INA FAG - PTUE50 - Bearing Block CPL.

OEM Supplier

SKU: ina-fag-ptue50

INA FAG - PTUE50 - Bearing Block CPL.

€82.88

(excl. VAT)

In stock - ready to ship

Ships within 93 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€82.88

The INA-FAG PTUE50 bearing block is a robust complete unit featuring a cast iron Plummer block housing (PTUE) and a high-quality spherical roller bearing. Designed for demanding industrial and agricultural applications, this unit ensures reliable performance and easy installation. It has a 50mm bore diameter, making it suitable for shafts of this size. The PTUE50 is engineered for durability and efficient power transmission, providing excellent support and alignment for rotating shafts.
INA FAG
INA and FAG are two prominent brands under the Schaeffler Group, a global automotive and industrial supplier based in Herzogenaurach, Germany. FAG was founded in 1883 by Friedrich Fischer in Schweinfurt, Germany, and is recognized as a pioneer in the rolling bearing industry. INA was established in 1946 by Dr. Georg Schaeffler and Dr. Wilhelm Schaeffler in Herzogenaurach. Both brands were acquired by Schaeffler, forming a powerful combination in bearing technology and precision components. The Schaeffler Group, through its INA and FAG brands, offers an extensive portfolio of high-precision components and systems for various industrial applications, including agricultural machinery. FAG is particularly known for its rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, suchers as rolling bearings, plain bearings, and linear guidance systems, while INA specializes in engine components, such as cam followers, tensioner pulleys, and clutch release bearings, as well as specific bearing solutions. Their products are engineered for durability, efficiency, and performance in demanding environments. At Partao, you can find a wide range of genuine INA FAG spare parts across top categories such as Ball Bearings, Air Filters, Axle Seals, Battery Chargers, and Bearing Housings. These components are critical for the smooth operation and longevity of various agricultural machines, from tractors to harvesters, ensuring reliable power transmission and reduced friction. Over 1717,174 genuine INA FAG spare parts are available at Partao. INA FAG components are trusted by agricultural machinery manufacturers and operators worldwide due to their reputation for precision engineering and robust construction. The brands' products are designed to withstand the harsh conditions and heavy loads typical in farming operations, contributing to the overall reliability and efficiency of the equipment. Their global presence and commitment to innovation ensure widespread availability and continuous technological advancement.

Brand
Part Numbers
ptue50
Unit
Each
Weight
2,35 kg
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Total width
115 mm
Total height
115 mm
ATotal length
148 mm
VHousing width
115 mm
MHousing length
102 mm
DGuide groove width
16 mm
WGuide groove length
85 mm
Mounting holes length
49 mm
Mounting holes distance
50 mm
HShaft vertical distance
90 mm
KMounting holes diameter
29 mm
dBearing inside diameter
50 mm
LBearing inner ring width
43,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
69 mm
OBearing balls distance to mounting surface
32,7 mm
EAN
4054372845307
Manufacturer
INA/FAG
