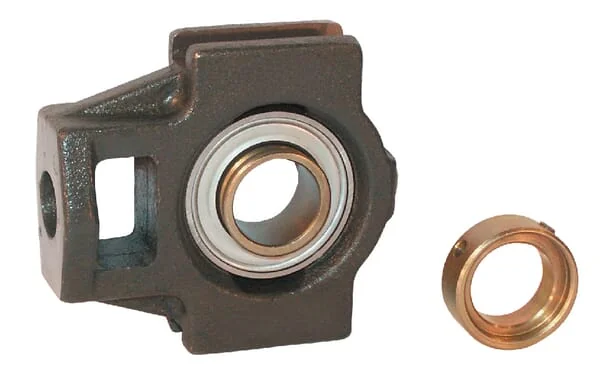

INA FAG - PTUE40 - Housing Unit Ptue

OEM Supplier

SKU: ina-fag-ptue40

INA FAG - PTUE40 - Housing Unit Ptue

€53.12

(excl. VAT)

In stock - ready to ship

Ships within 75 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€53.12

INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,174 genuine Ina-fag spare parts.

Brand
INA/FAG
Part Numbers
ptue40
Unit
Each
Properties
Inner bearing has one-sided extended inner ring with clamp ring Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
ATotal length
141 mm
VHousing width
115 mm
MHousing length
102 mm
DGuide groove width
16 mm
WGuide groove length
82 mm
Mounting holes length
49 mm
Mounting holes distance
40 mm
HShaft vertical distance
88 mm
KMounting holes diameter
29 mm
dBearing inside diameter
40 mm
LBearing inner ring width
43,8 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
58 mm
OBearing balls distance to mounting surface
32,7 mm
EAN
4054372568114
Manufacturer
INA/FAG
