INA FAG - TASE60N - INA Plummer Block Housing Unit
INA FAG - TASE60N - INA Plummer Block Housing Unit
INA FAG - TASE60N - INA Plummer Block Housing Unit
INA FAG - TASE60N - INA Plummer Block Housing Unit
INA FAG - TASE60N - INA Plummer Block Housing Unit
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

INA FAG - TASE60N - INA Plummer Block Housing Unit

INA FAG - TASE60N - INA Plummer Block Housing Unit

€146.93

(Excl. VAT)

Price

(Excl. VAT)

€146.93

Product Description

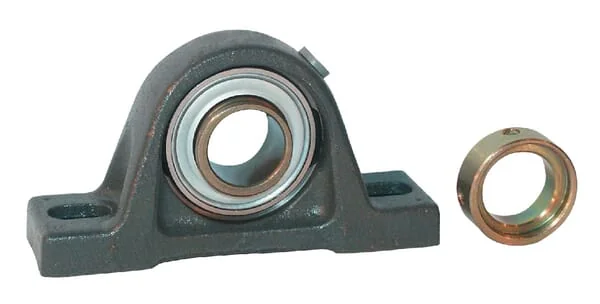

The INA TASE60-N is a high-quality plummer block housing unit designed for robust performance in various industrial machinery. This genuine INA component features a durable cast iron housing and is equipped with RSR seals on both sides to protect against contaminants, ensuring extended bearing life. With a 60mm bore diameter, it is suitable for shafts requiring secure and stable mounting. Key dimensions include an overall length of 210mm, housing width of 60mm, and a height of 120mm. The unit's design incorporates grub screws for secure shaft attachment, making it an essential component for reliable power transmission and support systems.
INA FAG
Ina-fag is a supplier of precision bearings and components for agricultural machinery. The brand offers high-quality bearings for tractors, harvesters, and other heavy-duty equipment. Ina-fag products are engineered to withstand harsh farming conditions and reduce maintenance needs. Shop more than 17,176 genuine Ina-fag spare parts.

Product Details

Brand
INA/FAG
Unit
Each
Weight
4,89 kg
Benefits
Very good protection against contamination
Properties
Inner bearing has extended inner ring with clamp ring on both sides Can be subsequently lubricated
Consists of
• Bearing block Clamp ring
Housing type
Pillow block
HTotal height
140 mm
WTotal length
240 mm
BHousing width
60 mm
CFlange thickness
19 mm
Mounting holes distance
190 mm
AShaft vertical distance
69,9 mm
KMounting holes diameter
16,6 mm
dBearing inside diameter
60 mm
LBearing inner ring width
77,9 mm
Grease nipple thread diameter
M6
Locking ring outside diameter
84 mm
OBearing balls distance to mounting surface
46,8 mm
Manufacturer
INA/FAG
