JORC - 1603 - Jorc fluidrain g1/2 4.5 v 230vac

SKU: jorc-1603

JORC - 1603 - Jorc fluidrain g1/2 4.5 v 230vac

€155.46€132.87 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 1 to 2 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€155.46

Brand
Timer
PCB / SMD technology ensures production consistency
Remark
Time-controlled condensate drain
Valve seal
FPM
Valve type
2/2-way, direct acting
Weight [kg]
0.501
Rated voltage
230 VAC
Test function
yes
Plug connection
DIN 43650-A
System pressure
0 to 16 bar
Inlet connection
1/2" (BSP or NPT)
Protection class
IP65 (NEMA4)
Inlet height [mm]
10
Outlet connection
1/2" (BSP or NPT)
Maintainable valve
yes
Medium temperature
+1°C to +55°C
Valve opening [mm]
4.5
Ambient temperature
+1°C to +55°C
Time cycle (On/Off)
0.5 - 10 sec / 0.5 - 45 min (depending on timer model)
Cycle indicator timer
bright LED lighting
Max. compressor power
unlimited
Valve housing material
Brass (stainless steel available)
Manufacturer
JORC

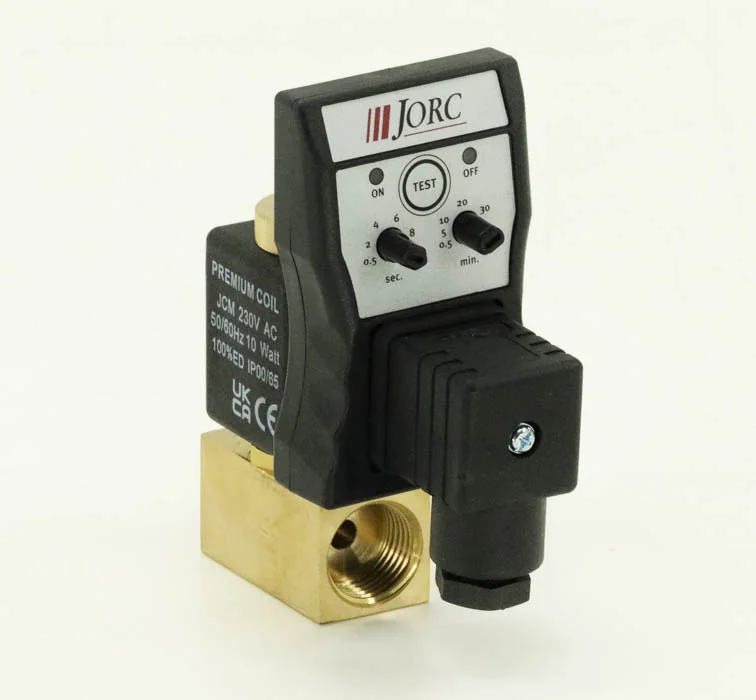

The JORC FLUIDRAIN G1/2 4.5 V 230VAC is a time-controlled condensate drain with a 2/2-way direct-acting valve, powered by 230 VAC and featuring FPM valve sealing and IP65 protection. Part number is 1603.
JORC
JORC is a manufacturer specializing in condensate management solutions for compressed air systems. The company was founded in 1991 and is headquartered in Heerlen, Netherlands. JORC has established itself as a reliable provider of innovative and energy-efficient products designed to remove condensate from compressed air, which is crucial for maintaining the efficiency and longevity of pneumatic equipment. The brand's product range primarily focuses on various types of condensate drains, oil/water separators, and related accessories. JORC is known for its timer-controlled drains, level-sensed drains, and zero-loss drains, which are engineered to minimize air loss and reduce energy consumption. These solutions are vital in industrial settings where compressed air is used extensively, including in workshops and facilities that maintain agricultural machinery. At Partao, you can find genuine JORC spare parts and components that support the maintenance of compressed air systems. Our catalog includes Diagnostic Tools, Hoses & Fittings, Oil Filters, Other Electrical Components, and Other Filters. JORC products are valued in various industrial applications for their robust construction and effectiveness in ensuring clean and dry compressed air. For agricultural workshops and service centers, reliable condensate management is essential to protect pneumatic tools and systems used in machinery repair and maintenance, contributing to operational efficiency and equipment lifespan. Shop more than 254 genuine JORC spare parts.
