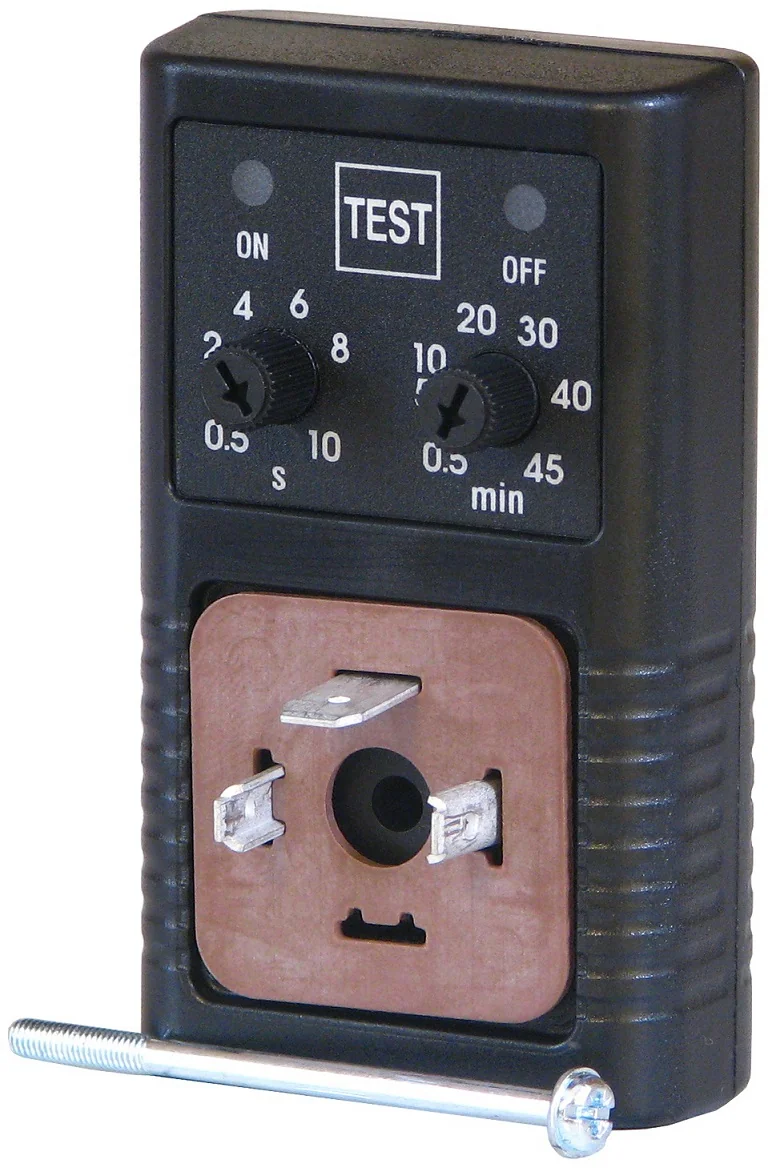

JORC - 2301 - Jorc ez1 g1/4 230vac

SKU: jorc-2301

JORC - 2301 - Jorc ez1 g1/4 230vac

€47.24

(excl. VAT)
RRP:€89.70
Save €42.46

In stock - ready to ship

Ships within 48 hours

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€47.24

JORC
JORC is a manufacturer specializing in condensate management solutions for compressed air systems. The company was founded in 1991 and is headquartered in Heerlen, Netherlands. JORC has established itself as a reliable provider of innovative and energy-efficient products designed to remove condensate from compressed air, which is crucial for maintaining the efficiency and longevity of pneumatic equipment. The brand's product range primarily focuses on various types of condensate drains, oil/water separators, and related accessories. JORC is known for its timer-controlled drains, level-sensed drains, and zero-loss drains, which are engineered to minimize air loss and reduce energy consumption. These solutions are vital in industrial settings where compressed air is used extensively, including in workshops and facilities that maintain agricultural machinery. At Partao, you can find genuine JORC spare parts and components that support the maintenance of compressed air systems. Our catalog includes Diagnostic Tools, Hoses & Fittings, Oil Filters, Other Electrical Components, and Other Filters. Over 254 genuine JORC spare parts are available at Partao. JORC products are valued in various industrial applications for their robust construction and effectiveness in ensuring clean and dry compressed air. For agricultural workshops and service centers, reliable condensate management is essential to protect pneumatic tools and systems used in machinery repair and maintenance, contributing to operational efficiency and equipment lifespan.

Brand
Timer
PCB / SMD technology ensures consistency of production
Remark
Time-controlled condensate drain
Valve seal
FPM
Valve type
2/2-way, directly controlled
Weight [kg]
0.508
Rated voltage
230 VAC
Test function
yes
Plug connection
DIN 43650-A
System pressure
0 to 16 bar
Inlet connection
1/4" (BSP or NPT)
Protection class
IP65 (NEMA4)
Inlet height [mm]
10
Outlet connection
1/4" (BSP or NPT)
Housing - material
ABS plastic FR class
Medium temperature
+1°C to +55°C
maintainable valve
yes
Ambient temperature
+1°C to +55°C
Cycle display timer
LED, glowing yellow
Time cycle (On/Off)
0.5 - 10 sec (On) / 0.5 - 45 min (Off)
max. compressor power
unlimited
Valve housing material
Brass (stainless steel available, see FLUIDRAIN)
Valve nominal diameter [mm]
4
Manufacturer
JORC
