Kramp - PV32M18NC - Kramp 3/2 pneumatic valve 1/8" - PV32M18NC, 8716106824779

OEM Quality

SKU: kramp-pv32m18nc

Kramp - PV32M18NC - Kramp 3/2 pneumatic valve 1/8" - PV32M18NC, 8716106824779

€43.88€37.50 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€43.88

Brand
Kramp
Part Numbers
PV32M18NC; 8716106824779
Bore
M 5
Type
Spool valve, spring return
Unit
Each
Bore F
4.20 mm
Type 2
NC
Nen Flow
740 NI/min

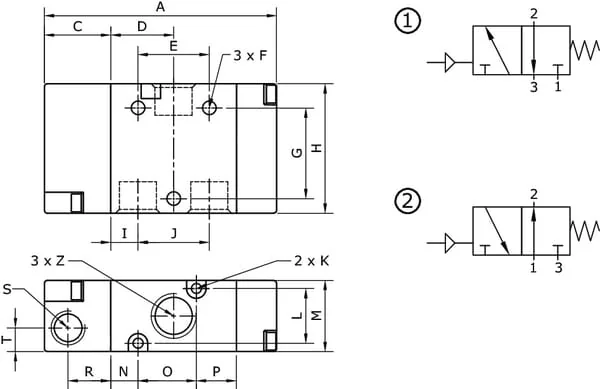

ALength A
59.10 mm
Actuation
Pneumatically
CLength C
18,80 mm
DLength D
14,90 mm
HHeight H
32 mm
MHeight M
22 mm
Connection
G 1/8
Material seal
NBR
KBore diameter
3.10 mm
Material housing
Anodized aluminium, coated
Switching symbol
1
Pilot pressure range
2 - 10 BAR
RHole center distance
13.50 mm
Working pressure max.
10 BAR
Working pressure min.
0 BAR
GDistance center to center
23.00 mm
EDistance for locating holes
15.5 mm
Distance center hole to right side
6.30 mm
ODistance center hole to left side
13 mm
JDistance mounting holes center to center
17,2 mm
Distance mounting holes center to center long side
10.50 mm
Distance mounting holes center to center short side
6.30 mm
Distance mounting holes short side center to center
16,90 mm
EAN
8716106824779
Manufacturer
Kramp

The Kramp 3/2 pneumatic valve 1/8" is an aftermarket part made to OEM quality standards. It has a normally closed design and pneumatic actuation. The housing is made of coated, anodized aluminum, and the part number is PV32M18NC.
Kramp
Kramp is a leading distributor of spare parts and accessories for agricultural machinery. Their catalog includes wear parts, belts, and maintenance items for tractors and implements. Kramp ensures quick availability of critical components for farming operations. Shop more than 95,384 genuine Kramp spare parts.
