LuK - 230001542 - LuK Dual Pressure Plate KGA3 for e.g. Massey Ferguson - 4005108736086

OEM Supplier

SKU: luk-230001542

LuK - 230001542 - LuK Dual Pressure Plate KGA3 for e.g. Massey Ferguson - 4005108736086

€658.70€562.99 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€658.70

Brand
LUK
Part Numbers
4005108736086; 230001542; 230 0015 42
OEM Part Numbers

Massey ferguson

Fits

Massey ferguson

Type
KGA3
Unit
Each
Levers
Yes
Suitable for
Massey Ferguson
LuK type code
KGA 3
Spring colour
Red
Technical info
SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Number of holes
6
Outside diameter
250 mm300 mm
Number of springs
6
Manufacturer
LUK

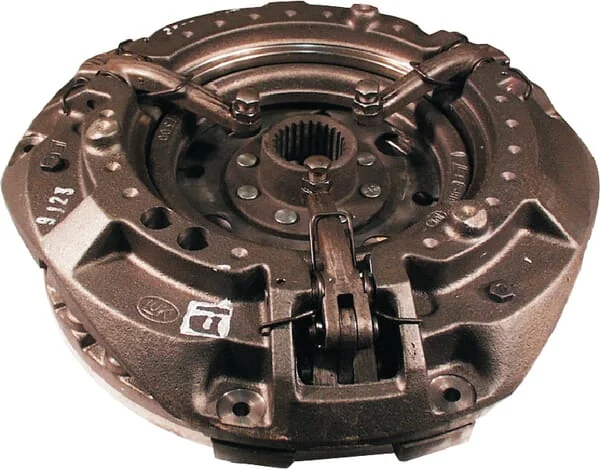

LuK dual pressure plate KGA3, part number 230001542, is made by an OEM supplier and fits Massey Ferguson models. It features six red springs and a lever-type design. Equivalent to 1868002M91, 1868002M92, and 3610427M91.
LUK
Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 1,230 genuine Luk spare parts.
