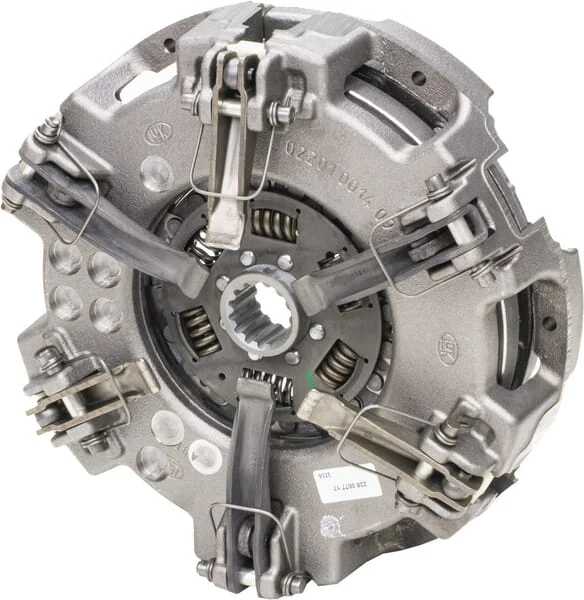

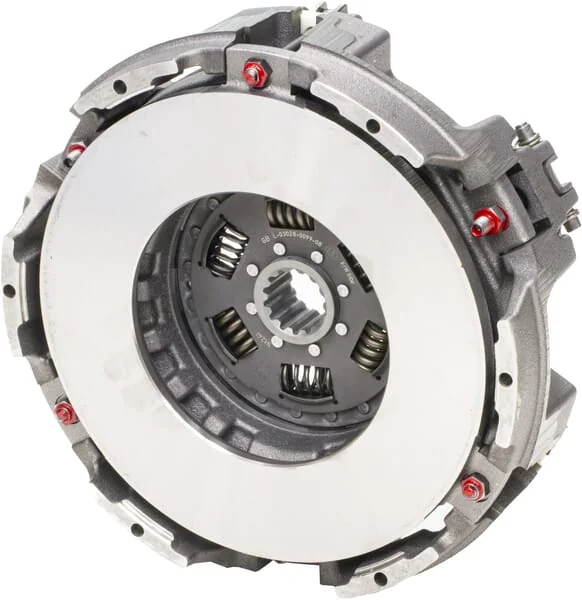

LuK - 228007717 - Pressure Plate Double TGU6 for Case Ih, New Holland among others

OEM Supplier

SKU: luk-228007717

LuK - 228007717 - Pressure Plate Double TGU6 for Case Ih, New Holland among others

€440.69

(excl. VAT)
RRP:€517.72
Save €77.04
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering

Shipping fee: €6.00 excl. VAT

Pay Securely with

Price

(Excl. VAT)

€440.69

LuK
Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 395 genuine Luk spare parts.

Brand
LuK
Part Numbers
4005108328694; 228007717; 458228007717; 228 0077 17
OEM Part Numbers

Case ih

New holland

Fits

Case ih

New holland

Type
TGU6
Unit
Each
Levers
Yes
Suitable for
Fiatagri New Holland
LuK type code
TGU 6
Technical info
SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Number of holes
12
Outside diameter
280 mm280 mm
Number of springs
1
Manufacturer
LuK
