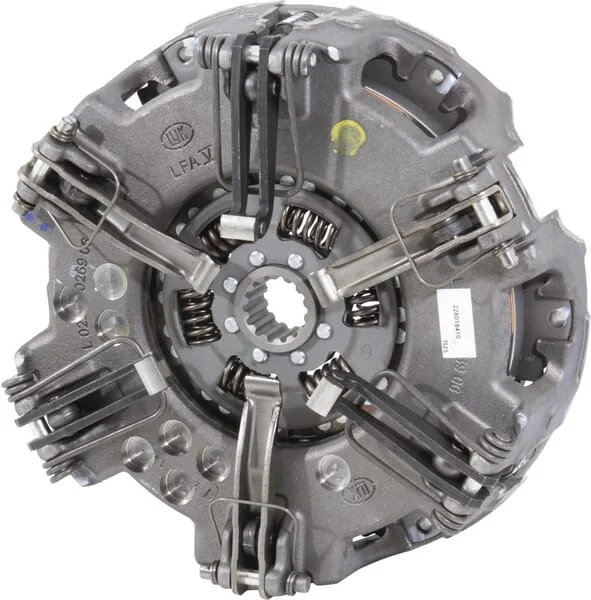

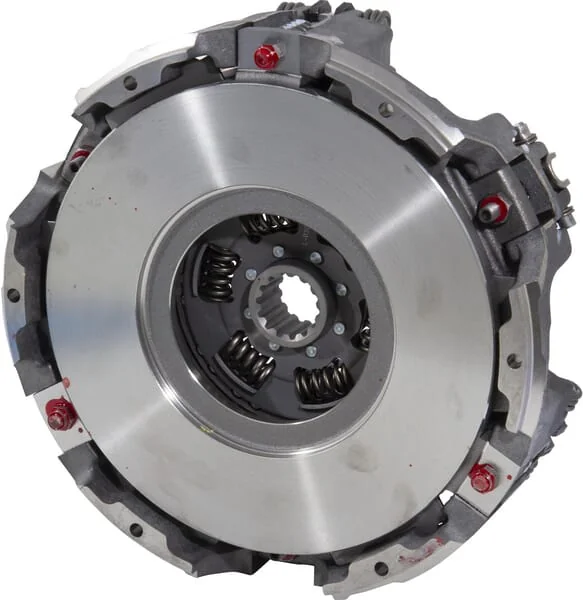

LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060
LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060
LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060
LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060

LuK - 228018410 - LuK Dual Pressure Plate KGS6 for e.g. Case Ih - 4005108529060

€411.82

(Excl. VAT)

Price

(Excl. VAT)

€411.82

LuK
Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 621 genuine Luk spare parts.

Product Details

Brand
LuK
Equivalent OEM Part Numbers

Case ih

3137025R923137025R933137025R943137025R953137025R963137025R973137025R983137025R993137025R91

International harvester

3137025R993137025R983137025R973137025R963137025R953137025R943137025R933137025R923137025R91
Fits

Case ih

323353383423433453533540553633640644653733740743744745833840844844S9409461046124614551455XL

International harvester

323353383423433453533540553633640644653733740743744745833840844844S9409461046124614551455XL
Type
KGS6
Unit
Each
Levers
Yes
Suitable for
Case New Holland
LuK type code
KGS 6
Technical info
SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Number of holes
6
Outside diameter
280 mm280 mm
Number of springs
1
Manufacturer
LuK
