LuK - 233002012 - LuK Pressure Plate double TGU6 - 233002012

OEM Supplier

SKU: luk-233002012

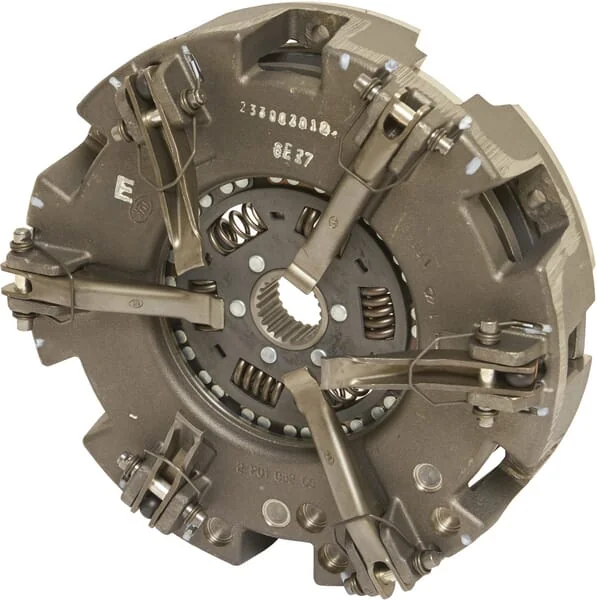

LuK - 233002012 - LuK Pressure Plate double TGU6 - 233002012

€1,324.25€1,131.84 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€1,324.25

Brand
LuK
Part Numbers
4005108069627; 233002012; 458233002012; 233 0020 12
OEM Part Numbers

Landini

Massey ferguson

Fits

Massey ferguson

Landini

Mccormick

Type
TGU6
Unit
Each
Levers
Yes
Suitable for
MF Landini
LuK type code
TGU 6
Technical info
SINGLE-PLATE CLUTCH 1st figure: clamping system S = coil spring T = diaphragm spring N = fixed PTO on coil spring clutch D = fixed PTO on diaphragm spring clutch H = diaphragm clutch with levers J = diaphragm clutch with levers and fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: flywheel type F = flat flywheel V = pot flywheel A = non-standard version 4th figure: release bearing contact area O = without release plate M = with release plate R = curved diaphragm fingers P = flat diaphragm fingers DOUBLE CLUTCH: 1st figure: clamping system S = coil spring T = diaphragm spring K = combination of coil and diaphragm spring X = twin plate clutch; diaphragm spring; levers Y = twin plate clutch; coil spring; levers with release plate Z = twin plate clutch; diaphragm spring; levers; fixed PTO 2nd figure: housing material B = pressed steel G = cast iron 3rd figure: clutch type A = combined or sequential U = independent W = single gear shaft 4th figure: number of levers 3 = 3 levers 6 = 6 levers
Number of holes
6
Outside diameter
330 mm330 mm
Manufacturer
LuK

LUK
Luk is a manufacturer of clutch systems and drivetrain components for agricultural machinery. The brand is recognized for high-performance solutions that ensure smooth power transmission in tractors. Its products are designed to withstand the rigorous demands of farming and forestry. Shop more than 630 genuine Luk spare parts.
