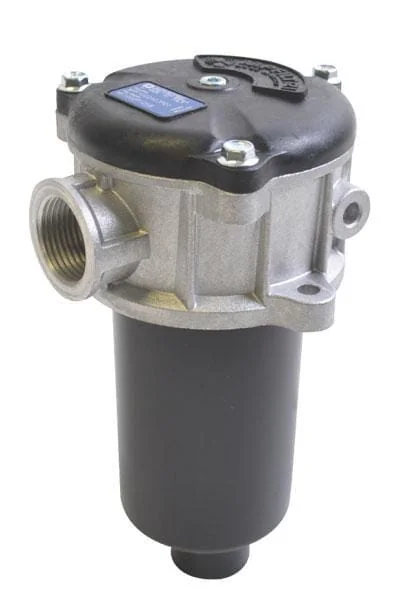

MP Filtri - MPF1001P10 - Return MPF 100/1-12-P10-T 3/4"

SKU: mp-filtri-mpf1001p10

MP Filtri - MPF1001P10 - Return MPF 100/1-12-P10-T 3/4"

€42.69€36.49 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€42.69

Tank assembly Filtering from the outside in Fitted with a bypass valve Aggregate filter Hydraulic systems Suitable for mineral oils up to ISO 2943 and synthetic fluids Available on request in a version suitable for aqueous emulsions, water and glycol Available on request with 3-bar bypass valve Available on request with NPT thread or SAE connection Viton seal available on request- The maximum volume flow rate for a complete return filter applies at a pressure loss ∆p = 0.5 bar and at a viscosity of 30 mm2/s (cSt).
MP Filtri
Mp-filtri produces hydraulic and fuel filtration systems for agricultural and construction machinery. The brand offers filters, separators, and breathers designed to protect engines and hydraulic systems from contamination. Its products are used in tractors, harvesters, and other heavy-duty equipment. Shop more than 631 genuine Mp-filtri spare parts.

Brand
MP Filtri
Part Numbers
mpf1001p10
Unit
Each
Bypass
Yes
Height
100 mm
Length
100 mm
Medium
Hydraulic oil
Includes
Excludes indicator / manometer
Filter finess
10 µm
Max flow rate
87 l/min
Filtration level
Nominal
Housing material
Aluminium
Outside diameter
88 mm
Pressure collapse
10 BAR
Filtration material
Cellulose impregnated
Max working pressure
8 BAR
Outlet port diameter
38 mm
Max working temperature
110 °C
Min working temperature
-25 °C
Inlet port flange diameter
120 mm
Outlet port thread diameter
3/4 Inch
Manufacturer
MP Filtri
