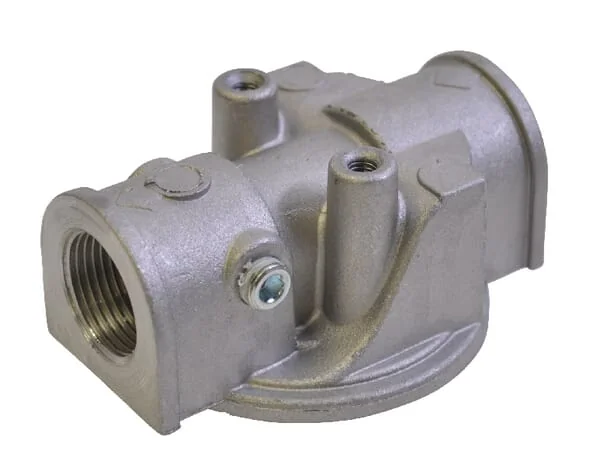

MP Filtri - MPS9050SG1 - Head Mps050/070-S-G1, 3/4" BSP

Application: suction filter, return filter Mounting: Pipe mounting, filter in vertical position In combination with filter elements type CS Operating pressure: Max. 12 bar Material: Aluminium Medium: Suitable for mineral oil Seal: N.B.R. , viton upon request Temperature: -25°C to +110°C Filtering: From the outside in Bypass opening pressure return filter: 1.75 bar Bypass opening pressure suction filter : 0.3 bar Flow rate depends on build size and filter choice. Filter elements available in fibreglass (A), paper (P) or metal (M) Filter elements available as M25 / M60 / P10 / P25 / A03 / A06 / A10 / A16 / A25 (in µm)
