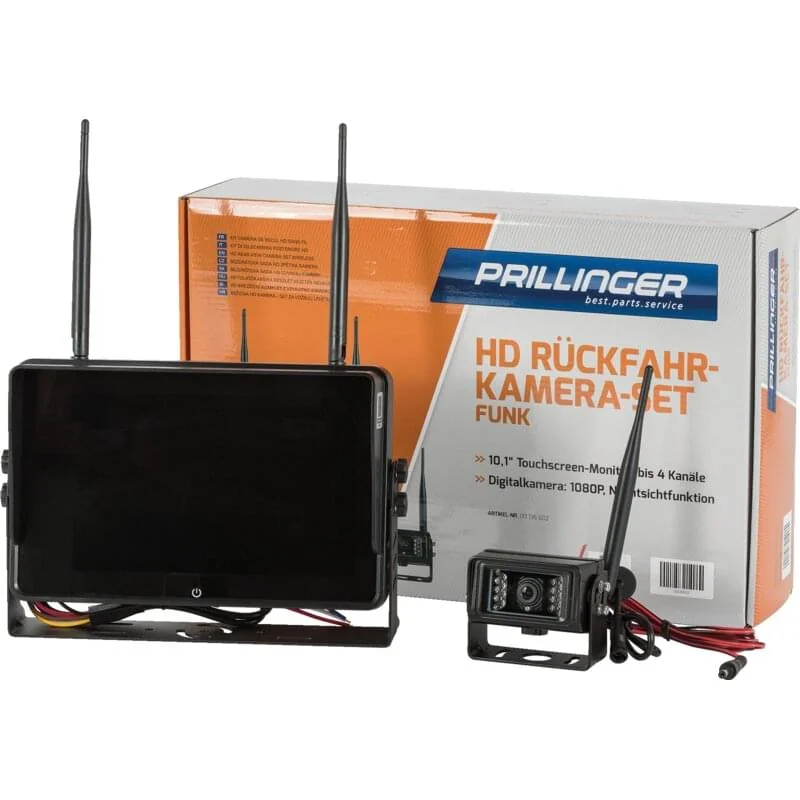

Prillinger - 00136602 - Other Electrical Components

Product Features 10,1-inch Touchscreen Monitor Screen: 10,1-inch LCD screen with a resolution of 1024 x 600, providing clear and sharp images. Housing: Made of aluminum alloy, ensuring structural stability and effective heat dissipation. Operation: Supports touchscreen functionality, offering fast and responsive operation. Storage: External TF card storage for video recordings, supports up to 512 GB. Recording files are automatically overwritten. Voltage Compatibility: Wide input voltage range of DC 11 V – 32 V, suitable for various vehicles and machines. Safety Design: Features an internal reverse polarity protection circuit to prevent device damage from connections. Backlight Design: Built-in protection circuit for constant voltage and current to extend the display's lifespan. Multi-language Support: OSD menu (On-Screen Display) available in 10 languages. Multi-View Display: Supports dual, triple, and quadruple screen display. Image Adjustment: Each channel can be independently adjusted for horizontal mirroring and supports upside-down installation and 180° screen rotation. Parking Aid: Supports parking guidelines for individual channels, with switchable guideline function. Vibration Resistance: The compact design meets GB/T 2423.56-2018 standards for vibration resistance. Wireless, waterproof HD Camera 1080P 2,4 GHz Wireless Camera: Equipped with automotive-grade DSP, high-resolution megapixels, IP69K waterproof rating, and IR-LED night vision functions. Summary: The wireless vehicle reversing camera system consists of a 10,1-inch touchscreen vehicle monitor and a wireless waterproof HD camera for various vehicles and mechanical equipment. The monitor is equipped with high-definition image quality, sensitive touch operation, wide voltage adaptation (DC 11 V-32 V), and multiple display modes (dual-screen, triple-screen, quad-screen, etc.), and also supports up to 512 GB TF card storage and an automatic video overlay function. The system also features an anti-vibration design, a reversing guideline, mirror image adjustment, etc., to ensure stable operation. The wireless camera supports 1080P HD resolution with IP69K waterproofing and IR-LED night vision and can provide clear images in various harsh environments. The overall system design focuses on safety, ease of use, and reliability, adapts to long-term high-load use, and meets the safety monitoring requirements of vehicle owners and operators. Product Parameters Screen: 10,1-inch IPS HD digital screen Wireless Reception: built-in 2,4G wireless receiver Operating Frequency: 2400–2483,5 MHz Reception Sensitivity: -86 dB Reception Distance: Up to 200 m clear line of sight Resolution: 1024 x 600 Viewing Angle (LR/UD): Left/Right: 85/85, Up/Down: 85/85 Video System: PAL/NTSC (AUTO) Video Recording Format: AVI Recording Storage Card Type: TF card (supports max. 512 GB) Response Time: 25 Ms Load Dump: ISO16750-2-Standard (24-V-System, Us 174 V, Ri 4 Ω, td 350 ms Vibration Damping: 5GB T 2423.56-2018-Standard (random 5G-Vibration) Operating Temperature: -20 to +70 Storage Temperature: -30 to +80 Operating Voltage: DC 11 - 32 V Dimensions (LxWxD): 265 x 168 x 37 mm (without bracket) Wireless HD Camera with Built-in Battery Image Sensor: 1/3,7 Color CMOS Wireless Transmission: integrated digital 2,4G wireless transmitter Transmission Frequency: 18 dBm Transmission Distance: open 200 Meter Resolution: 1080P Effective Pixels: 1920 (H) x 1080 (V) Visible Angle: 100° Infrared Distance: 15 Meter Housing Material: Aluminum alloy Waterproof Rating: IP69K Operating Temperature: -10 to +60 Storage Temperature: -20 to +70 Vibration Damping: GB/T 2423.56-2018-Standard (random 5G-Vibration) Dimensions(LxWxD): 106 x 75 x 70,4 mm
