STAUFF - PPC-Pad-light-CAN-SET-T-600/600/600 - Diagnostic Tools

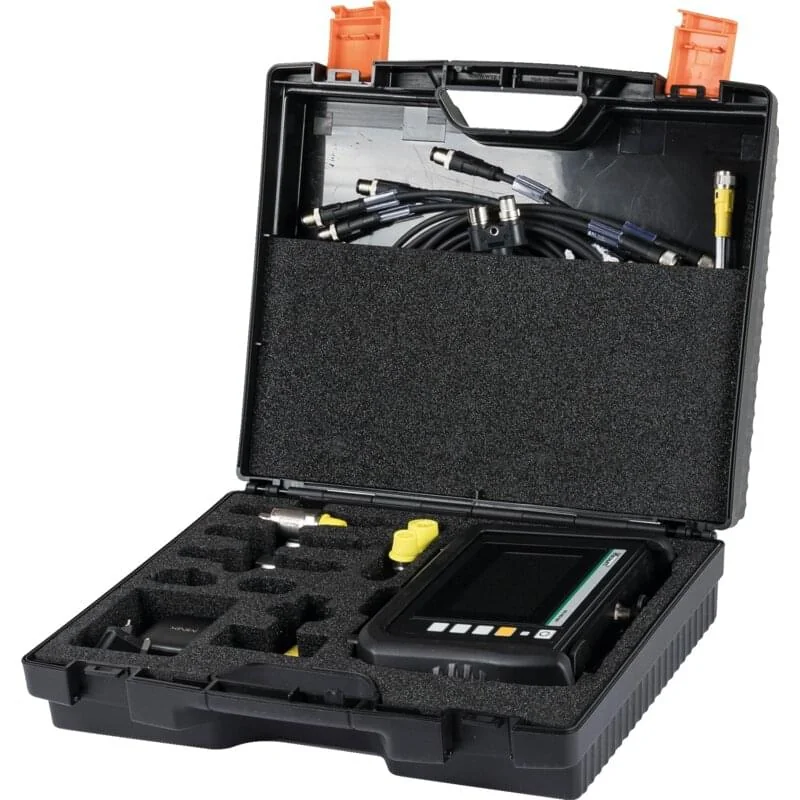

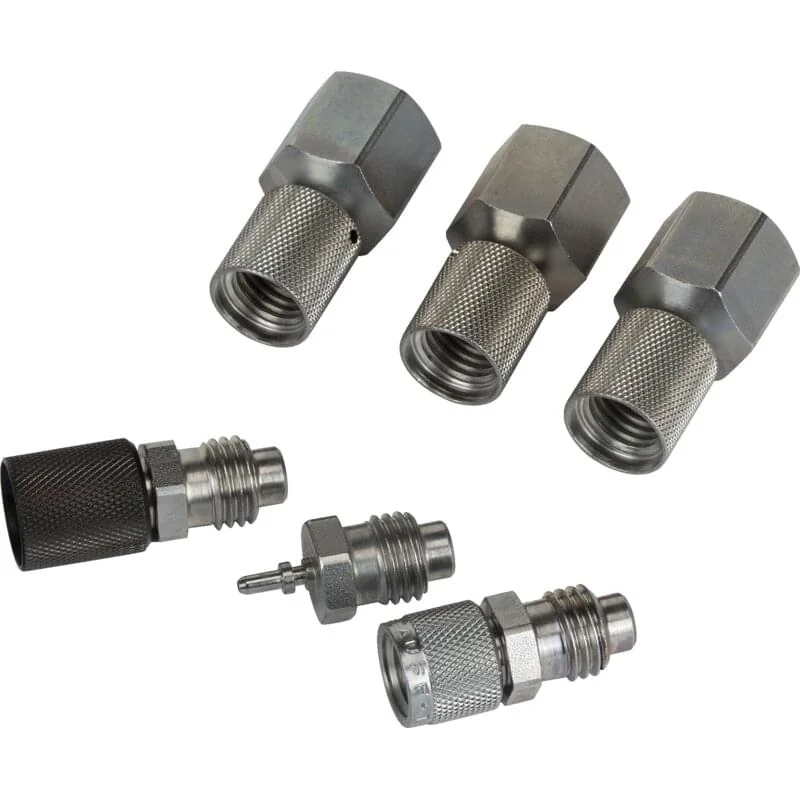

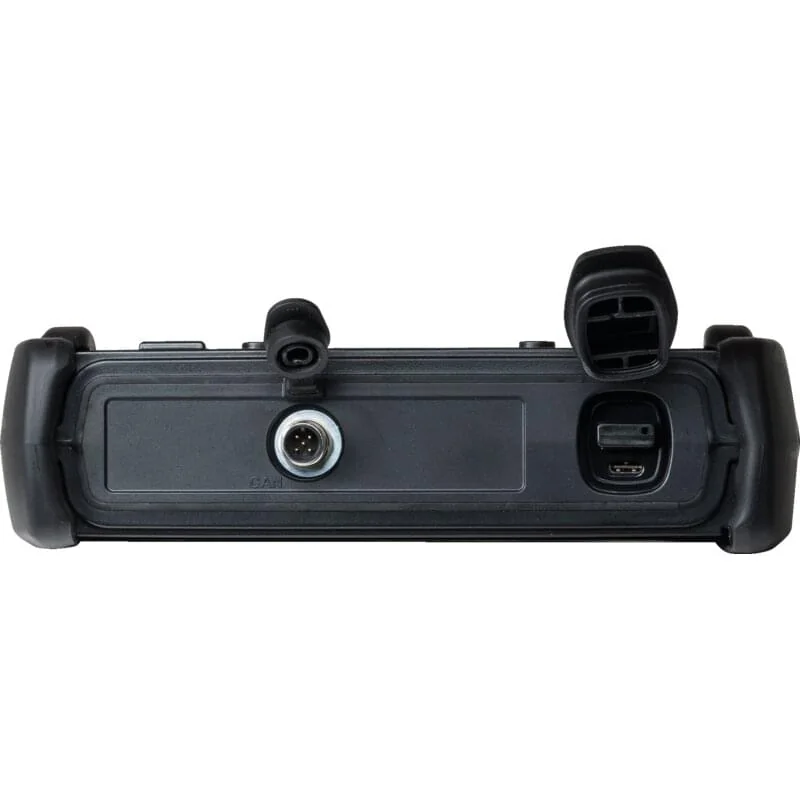

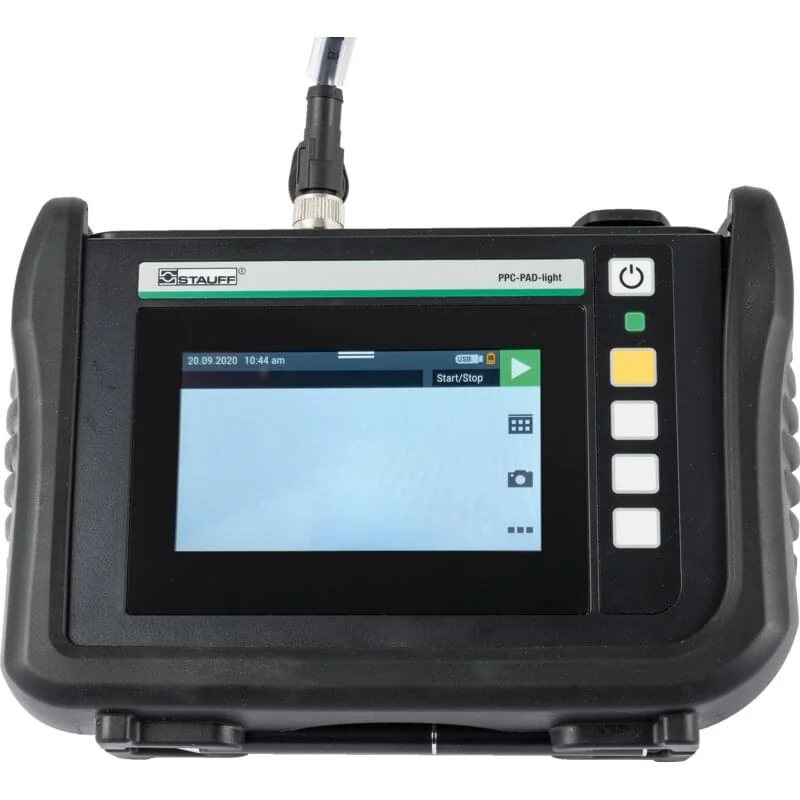

Features: Measuring device for measuring operating pressure, peak pressure, differential pressure, media temperature, and flow rate. 4,3” touch display and plain text navigation for easy operation (can also be operated with gloves). Max. 6 sensors can be connected simultaneously (CAN version). The determined values can be transferred to a PC or notebook at any time via the USB interface, or retrieved directly via the built-in USB stick. The included PPC-software is compatible with common Windows PC operating systems and enables various analyses. Max. CAN bus length: 50m (CAN version). Set consists of: 1x Case PPC-PAD-light, 1x Measuring device PPC-PAD-light-CAN, 1x Power supply unit incl. country adapter, 3x CAN pressure sensor 600bar with adapter Stauff Test M16x2, 1x CAN temperature sensor T-M02 M10x1 -40 to +150°C, 4x CAN connection cable 2m, 3x CAN-Y distributor, 1x CAN termination resistor, 3x Adapter SAD for Stauff Test 15/12/10, 2x USB cable 1m (USB A to C and USB C to C), 1x Quick guide with link to: PC software and operating instructions. Technical Information: The PPC-PAD-light measuring devices have been specially developed for the growing demands of system monitoring and troubleshooting in hydraulic and pneumatic systems. The ergonomically designed housing and the LCD display, which automatically adjusts to the corresponding line size, enable problem-free use even under difficult environmental conditions. The 4,3” touchscreen enables easy programming of the device and comfortable visualization of the measurement data. With the PPC-PAD-light, all relevant hydraulic parameters such as pressure, differential pressure, temperature, speed, flow rate, and hydraulic power can be measured, stored, and processed. The PPC-PAD-light and PPC-PAD-light-CAN devices differ in the type of sensor connection. For example, the PPC-PAD-CAN can process up to 6 STAUFF CAN sensors simultaneously (max. cable length: 50 m / 164 ft in the CAN version). In particular, the extensive programming options and internal storage capacity enable various measurement and evaluation methods such as long-term measurements, trigger functions, or the acquisition of data from external sensors (e.g. 4-20 mA or 0-10 V). Due to automatic sensor recognition, the measuring devices are easy to operate and can be individually adjusted to customer requirements without extensive programming. With the devices, measured values can be recorded with a resolution of up to 1ms 1000 measured values/s. The determined values can be transferred to a PC or notebook at any time via the USB interface, or retrieved directly via the built-in USB stick. The included PPC-software is compatible with common Windows PC operating systems and enables various analyses.
