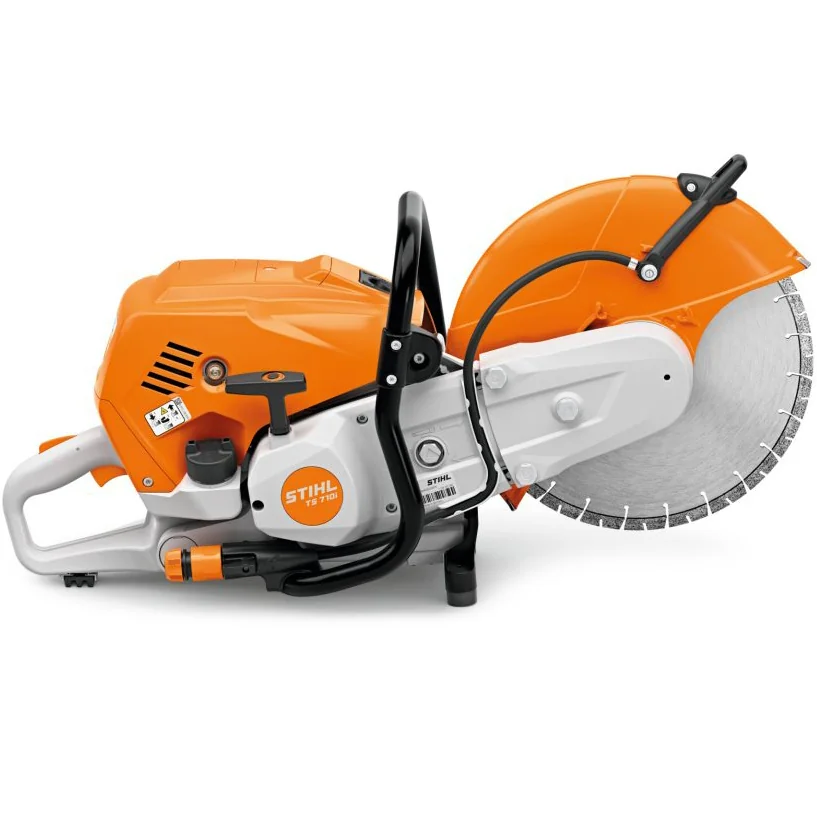

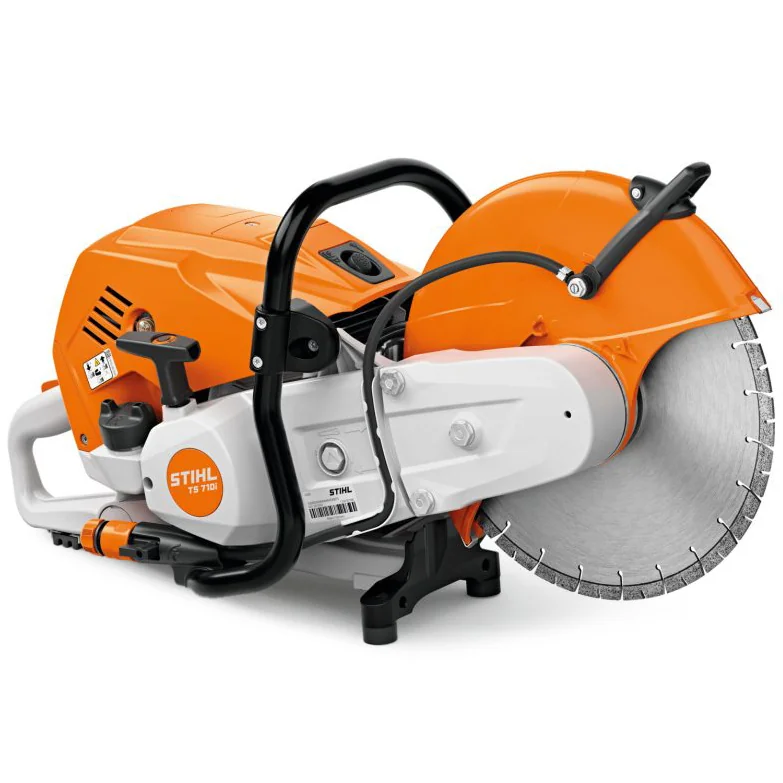

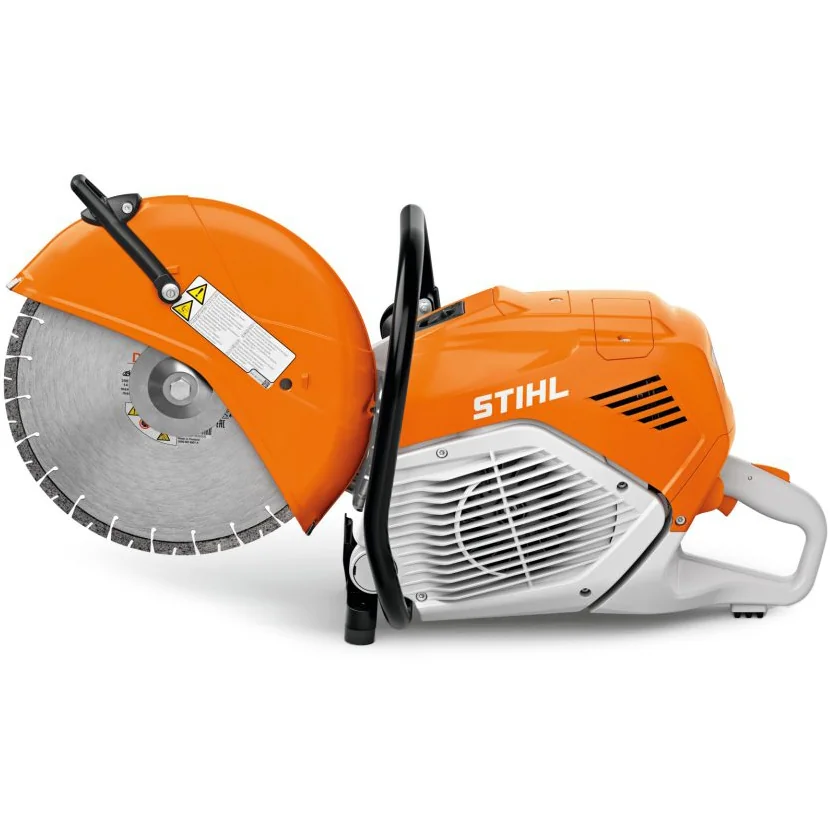

The STIHL TS 710i petrol cut-off saw is a very powerful, high-performance tool for professional use in civil and road construction, as well as for demanding tasks in gardening and landscaping or for efficient processing of mineral and metal materials, such as reinforced concrete, walls, asphalt and steel elements. Equipped with an innovative, electronically controlled STIHL injection system, a powerful STIHL 2-MIX engine. Reduced exhaust emissions and low fuel consumption are further advantages of using innovative technology. The TS 710i can be started in just 2 steps, and STIHL Injection, STIHL ElastoStart with a wear-resistant starter rope and decompression valve enable a simple and smooth starting process without sudden loads. The TS 710 i cut-off saw is suitable for cutting to a depth of up to 125 mm and can be guided by hand. The ergonomic handle design, and in particular the STIHL anti-vibration system, provide protection for muscles and joints during work. The design of the STIHL anti-vibration system also helps in precisely guiding the cut-off saw during cutting. We recommend using the optional STIHL FW 20 trolley, which can be used with an adapter, for precise cuts and longer cutting distances, for example in road construction. The placement of the water connection with a ball valve for wetting the cutting disc helps in efficient work. Thanks to the long-life air filter system, the interval between cleanings is extended, allowing you to use the STIHL TS 710i for a longer time without the need for maintenance. The drive of the TS 710i can be easily tensioned using the semi-automatic V-belt tensioning system, which extends the service life of the belt and bearing. The petrol cut-off saw can also be optionally equipped with the STIHL Smart Connector. You can access all recorded device data at any time, always have a precise overview of the device's operating time and plan necessary maintenance in advance.
Basic equipment
Corundum grinding wheel
Maximum cutting depth
Device length with cutting disc
The control unit of the electronic injection system constantly calculates the correct fuel supply and the ideal ignition timing, with injection occurring directly into the crankcase. Sensors measure air pressure, internal and external temperature and transmit the information to the control unit. Based on the determined values, this unit can optimally determine the fuel quantity and ignition timing. Compared to engines without injection, the unit provides more power at a comparable weight and displacement.
This 2-stroke engine has been designed to require infrequent maintenance and to consume fuel even at high power. A mixture of gasoline and engine oil should be used as fuel. The STIHL 2 Mix engine meets the requirements of the strict EU exhaust emissions directive, level V.
The cutting disc guard prevents the user from being exposed to impact caused by ejected material and cooling water coming from the cutting disc. The guard made of magnesium alloy casting is extremely light and durable.
Semi-automatic STIHL belt tensioning makes re-tensioning the drive belt easier. Constant tension extends the service life of the belt and bearing. For more detailed information on re-tensioning, refer to the power tool's operating instructions.
When the device's power increases, vibrations are generated that are particularly noticeable in the handle area. The buffer and spring elements of the STIHL anti-vibration system reduce the transmission of engine vibrations to the handle area and thus to the user's body. Effect: The device sits more comfortably in the hand, and work is significantly less tiring.
