Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Number of products

In stock - ready to ship

Order now for delivery between 19 May and 22 May

Free shipping

Pay Securely with

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

Voss - DGWEV16SM22 - Voss Swivel Coupling 16S M22

€77.29

(Excl. VAT)

Price

(Excl. VAT)

€77.29

Number of products

Product Description

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Voss

Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

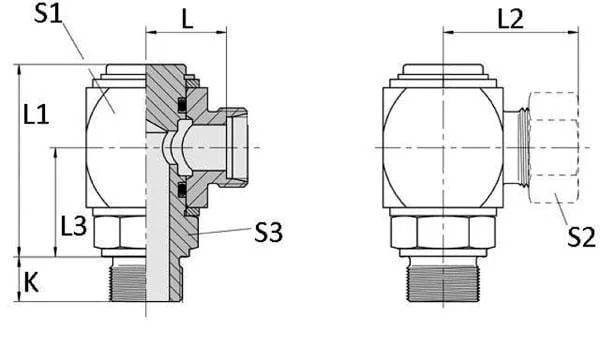

Product Details

Brand

Pros

2S cutting ring

Unit

Each

Angle

90 °

Shape

Elbow - 2 connection sides

Series

16S

L1Length

58,5 mm

DIN standard

2401 2353 228 3852 259

Pipe diameter

16 mm

Product details

2S cutting ring- Optimum cutting ring connection and functionality Multiple corrosion resistance Can rotate while pressurised- Hydraulic hose Hydraulic pipes For slow rotation or swivelling only

Surface treatment

Zinc, Nickel-plated

Connection 2, type

Thread

Connection no 1 type

Thread

Max working pressure

400 BAR

LConnections distance

24,5 mm

Connection 2, thread pitch

1.50 mm

S1Connection no 1 hex size

36 mm

S2Connection 2, wrench size

30.0 mm

Connection no 1 thread pitch

1.50 mm

Connection 2, thread diameter

M22

S3Connection no 1 wrench size

27.0 mm

KConnection no 1 thread length

14 mm

Connection no 1 thread diameter

M24

L3Connection centre to insert distance

33,5 mm

L2Connection no 1 center to end distance

42,5 mm

Manufacturer

Voss
