Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP
Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP
Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP
Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP

In stock - ready to ship

Order now for delivery between 23 May and 27 May
Free shipping on orders over €60

Pay Securely with

Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP

Voss - EGESD18LR34WD - Pipe-Insert Coupling 18L - 3/4 BSP

€11.38

(Excl. VAT)

Price

(Excl. VAT)

€11.38

Product Description

The VOSS EGESD18LR34WD is a high-quality EO-2 Soft Seal pipe-insert coupling designed for robust and leak-free hydraulic connections. This genuine VOSS component belongs to the 18L (Light) series, suitable for tubes with an 18 mm outer diameter. It features a G3/4" BSP (British Standard Pipe) parallel thread, ensuring compatibility with standard hydraulic systems. The Soft Seal technology provides enhanced sealing integrity, making it ideal for demanding industrial and mobile applications. This coupling is engineered for durability and performance in various fluid power systems.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
18L
Cone angle
24 °
DIN standard
2401
Pipe diameter
18 mm
Inside diameter
13 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
180 N·m

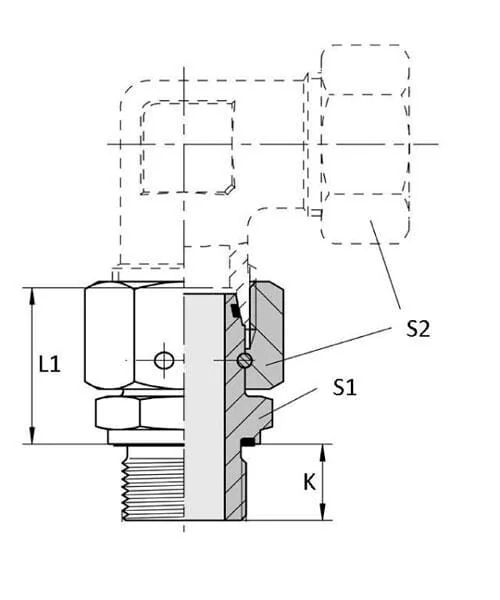

KConnection no 1 length
16 mm
Connection no 1 diameter
18 mm
Connection no 1 hex size
31,9 mm
Connection 2, thread type
BSP
Connection 2, thread length
16 mm
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
32.0 mm
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
3/4 Inch
Connection no 1 thread length
16 mm
S1Connection no 1 wrench size
32.0 mm
Connection 2, threads per inch
14
Connection no 1 thread diameter
M26
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
31,5 mm
Manufacturer
Voss
