VOSS - EGESD28LR1WD - COUPLING 28L R1

OEM Quality

SKU: voss-egesd28lr1wd

VOSS - EGESD28LR1WD - COUPLING 28L R1

€13.91€11.89 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€13.91

Brand
Voss
Part Numbers
egesd28lr1wd
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
28L
Cone angle
24 °
Pipe diameter
28 mm
Inside diameter
22 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
250 BAR
Max. tightening torque
230 N·m

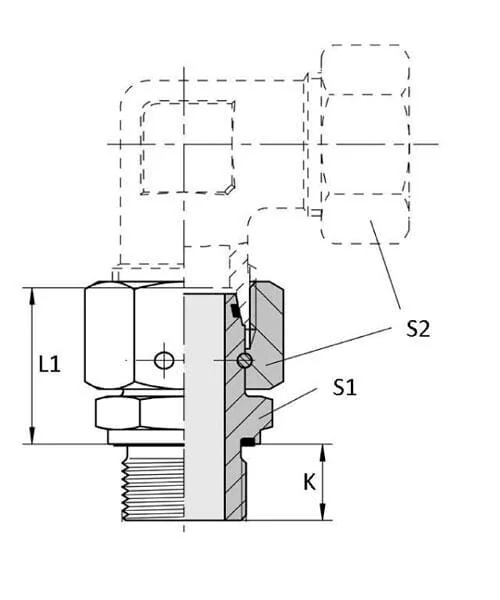

KConnection no 1 length
18 mm
Connection no 1 diameter
28 mm
Connection no 1 hex size
39,9 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
41.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1 Inch
Connection no 1 thread length
18 mm
S1Connection no 1 wrench size
41.0 mm
Connection 2, threads per inch
11
Connection no 1 thread diameter
M36
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
35 mm
Manufacturer
Voss

Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,648 genuine Voss spare parts.
