Voss - EGESD20SR34WD - Coupling
Voss - EGESD20SR34WD - Coupling
Voss - EGESD20SR34WD - Coupling
Voss - EGESD20SR34WD - Coupling

In stock - ready to ship

Order now for delivery between 19 May and 22 May
Free shipping on orders over €60

Pay Securely with

Voss - EGESD20SR34WD - Coupling

Voss - EGESD20SR34WD - Coupling

€8.14

(Excl. VAT)

Price

(Excl. VAT)

€8.14

Product Description

The VOSS EGESD20SR34WD is a high-quality coupling designed for robust hydraulic applications. This component features a straight design with a 20mm tube outer diameter (O.D.) and a 3/4" NPTF (National Pipe Taper Fuel) male thread connection. It is engineered for reliable performance in demanding industrial and mobile hydraulic systems, ensuring secure and leak-free connections.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
20S
Cone angle
24 °
DIN standard
2401
Pipe diameter
20 mm
Inside diameter
14 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
420 BAR
Max. tightening torque
200 N·m

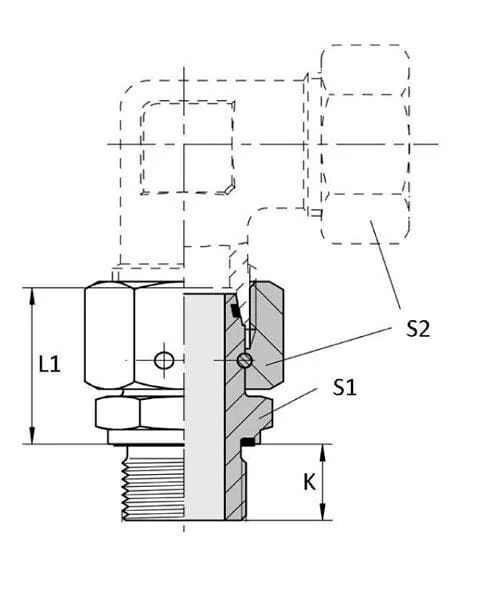

KConnection no 1 length
16 mm
Connection no 1 diameter
20 mm
Connection no 1 hex size
31,9 mm
Connection 2, thread type
BSP
Connection 2, thread length
16 mm
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
36.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
3/4 Inch
Connection no 1 thread length
16 mm
S1Connection no 1 wrench size
36.0 mm
Connection 2, threads per inch
14
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
43 mm
Manufacturer
Voss
