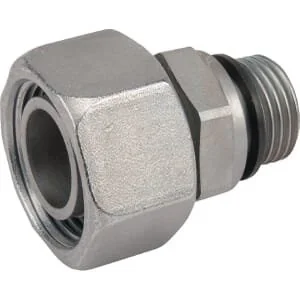

Voss - EGESD22LR12WD - Rotating Adapter 22L - 1/2BSP
Voss - EGESD22LR12WD - Rotating Adapter 22L - 1/2BSP

In stock - ready to ship

Order now for delivery between 20 May and 23 May
Free shipping on orders over €60

Pay Securely with

Voss - EGESD22LR12WD - Rotating Adapter 22L - 1/2BSP

Voss - EGESD22LR12WD - Rotating Adapter 22L - 1/2BSP

€7.94

(Excl. VAT)

Price

(Excl. VAT)

€7.94

Product Description

The VOSS EGESD22LR12WD is a genuine VOSS rotating adapter designed for hydraulic systems. It features a 24° cone connection suitable for 22mm outer diameter tubes and a G 1/2 BSPP parallel thread. This light series (L) adapter is constructed from durable steel with a VossCoat surface finish, ensuring reliable performance and enhanced corrosion resistance in demanding agricultural, construction, and industrial applications.
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,632 genuine Voss spare parts.

Product Details

Brand
Voss
Pros
Reduced risk of leakage
Unit
Each
Shape
Straight - 2 connection sides
Series
22L
Pipe diameter
22 mm
Seal material
Nitrile rubber [NBR]
Inside diameter
14 mm
Product details
Pre-assembled with O-ring Optimal cutting ring connection and functionality Multiple corrosion resistance Hydraulic hose Hydraulic pipes Viton seal available on request
Surface treatment
Zinc, Nickel-plated
Connection 2, type
Thread
Connection no 1 type
Cutting ring
Max working pressure
160 BAR
Max. tightening torque
100 N·m
Connection no 1 diameter
22 mm
Connection no 1 hex size
26,9 mm
Connection 2, thread type
BSP
Connection no 1 thread type
BSPP
S2Connection 2, wrench size
27.0 mm
Connection no 1 thread pitch
2.00 mm
Connection 2, thread diameter
1/2 Inch
Connection no 1 thread length
14 mm
S1Connection no 1 wrench size
36.0 mm
Connection 2, threads per inch
14
Connection no 1 thread diameter
M30
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Female
L1Connection 2, centre to end distance
32,5 mm
Manufacturer
Voss
