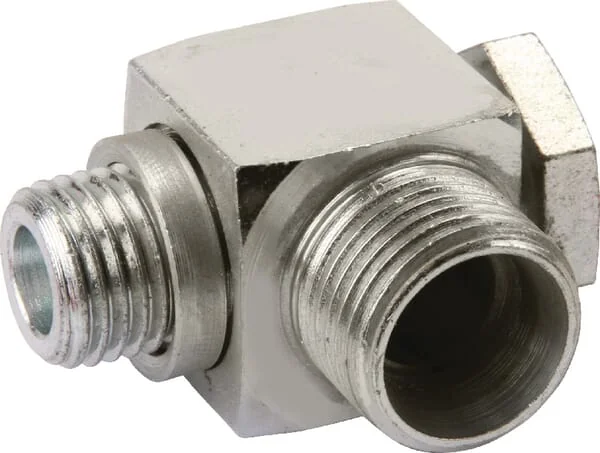

VOSS - RSWS12LM18WD - Swivel Fitting 12L M18

OEM Quality

SKU: voss-rsws12lm18wd

VOSS - RSWS12LM18WD - Swivel Fitting 12L M18

€14.15€12.09 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€14.15

Brand
Voss
Part Numbers
rsws12lm18wd
Unit
Each
Angle
90 °
Shape
Elbow - 2 connection sides
Series
LL L S
DIN standard
2353 228 3852 2401
ISO standard
228
Pipe diameter
12 mm
Seal material
Metal Synthetic elastomer
Inside diameter
8 mm10 mm
Product details
Multiple corrosion resistance Adjustable direction The adjusted direction is fixed by lock nut Hydraulic hose Hydraulic pipes Available in stainless steel on request
Long description
Application range: Hydraulic hose Hydraulic pipes Properties: Multiple corrosion resistance Adjustable direction Determine selected direction using self locking nut Technical informatio
Surface treatment
Zinc Nickel
Connection 2, type
Cutting ring
Connection 2, length
36 mm
Connection no 1 type
Banjo
Max working pressure
315 BAR
Connection 2, diameter
12 mm
Max. tightening torque
100 N·m
Connection no 1 hex size
23,9 mm
Connection 2, thread type
Metric
Connection 2, wrench size
24.0 mm
Connection 2, thread pitch
1.50 mm
Connection no 1 thread type
Metric
Connection no 1 thread pitch
1.50 mm
Connection 2, thread diameter
M18
S3Connection no 1 wrench size
24.0 mm
Connection no 1 thread diameter
18 mm
L1Connection no 1 thread length
12 mm
Connection 2, type - male/female
Male
Connection no 1 type - male/female
Male
Connection 2, centre to end distance
18,5 mm
Connection no 1 center to end distance
35 mm
Manufacturer
Voss

Application range: Hydraulic hose Hydraulic pipes Properties: Multiple corrosion resistance Adjustable direction Determine selected direction using self locking nut Technical informatio
Voss
Voss is a supplier of industrial and agricultural components, including hydraulic systems and fittings. The brand's products are used in tractor attachments, irrigation systems, and other farm machinery requiring reliable fluid handling. Its solutions ensure high performance and durability in demanding agricultural applications. Shop more than 2,730 genuine Voss spare parts.
