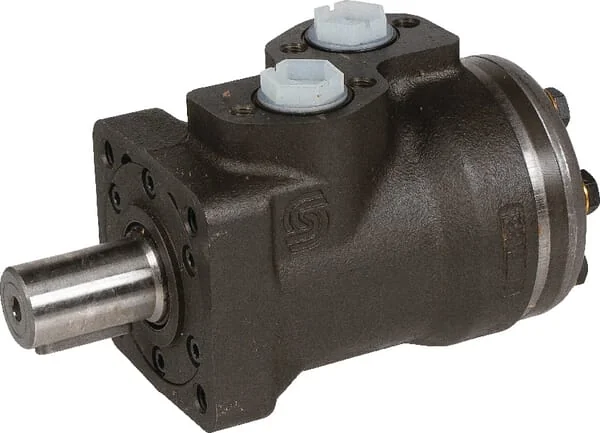

White - OMP2001517066 - Orbit Motor, Shaft 4-H, US, Diameter 25.4mm

SKU: white-omp2001517066

White - OMP2001517066 - Orbit Motor, Shaft 4-H, US, Diameter 25.4mm

€324.74

(excl. VAT)
RRP:€456.45
Save €131.73
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Price

(Excl. VAT)

€324.74

White
White is a brand with a significant history in American agriculture, primarily known for its tractors and farm equipment. The brand's origins trace back to the early 20th century, and it has undergone various transformations and mergers over the years, becoming a part of larger agricultural machinery groups. While its independent production has evolved, the legacy of White equipment remains. Historically, White produced a range of agricultural machinery, including tractors, planters, and tillage equipment. The brand was recognized for its innovative designs and robust construction, aiming to provide efficient and reliable solutions for farmers. Specific models like the White Field Boss series were well-regarded for their performance and durability in various farming operations. Partao offers a selection of genuine White spare parts, covering essential components such as Bolts & Fasteners, Drive Shafts, Hydraulic Seals, Needle Bearings, and Other Hydraulics Parts. Over 222 genuine White spare parts are available at Partao. Operators of classic and contemporary White machinery often seek out genuine parts to maintain the performance and extend the lifespan of their equipment. The brand's enduring presence in the agricultural sector, particularly in North America, means that its parts continue to be essential for keeping these reliable machines running efficiently on farms.

Brand
Unit
Each
Benefits
Flexible
Max. power
10 kW
Properties
Robust and compact construction High axial and radial load carrying capacity of the axle High starting torque Pressure drop: P1 = operating pressure continuous, P2 = operating pressure intermittent, P3 = peak pressure
Shaft type
Straight parallel
Displacement
200 cm³/rev
Flange shape
Square
Rotor length
26 mm
Sealing type
Standard
Housing length
155,9 mm
Max. flow rate
60 l/min
Shaft diameter
25,4 mm
Technical info
Seal can be ordered under no. OMP 9-AFD 98 (older series on request) Equipped with leakage oil connection so that the product can easily be used in series with other engines, can also be used in closed-centre hydraulic systems; P1 = operating pressure continuous, P2 = int. operating pressure max. 10%/min, P3= peak pressure
Application range
Wherever high torque and low speeds are required, e.g. for sweeping brushes, loader wagons, chain drives, spreaders, lawnmowers, winches, agricultural machinery, forestry machinery and construction machinery
Max pressure peak
225 BAR
Shaft thread type
UNC
Max rotation speed
310 r/min
Min rotation speed
7 r/min
Main port thread type
UNF
Max continuous torque
30 N·m
Shaft thread diameter
M8
Number of mounting holes
4
Main port thread diameter
7/8 Inch
Main port threads per inch
14
Mounting holes thread type
UNC
Mounting holes thread diameter
3/8 Inch
Max. continous working pressure
115 BAR
Mounting holes threads per inch
16
Max intermittend working pressure
150 BAR
Manufacturer
White
