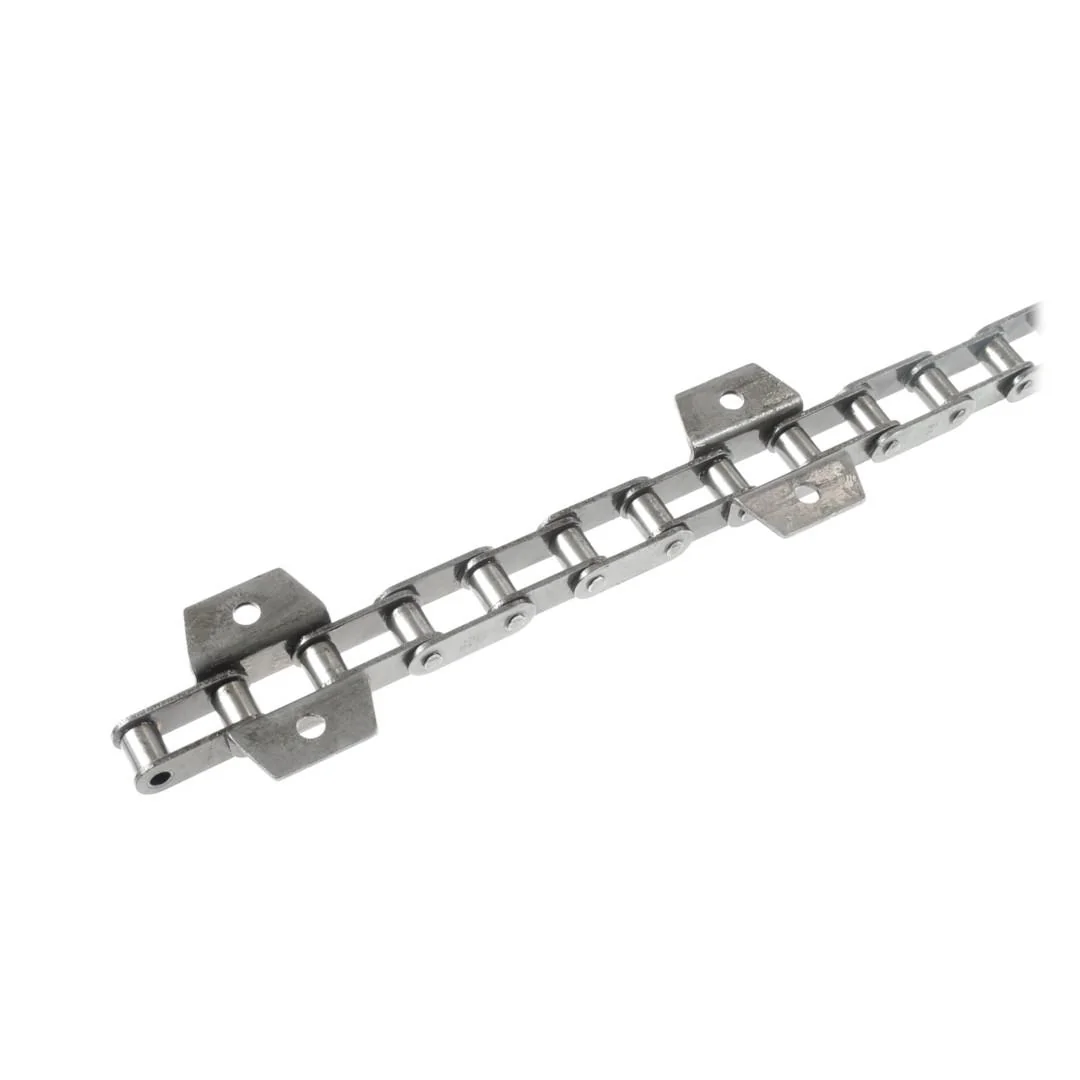

AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas
AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas
AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas
AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas
AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas
AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas

In stock - ready to ship

Order now for delivery between 21 May and 25 May
Free shipping

Pay Securely with

AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas

AgriParts - 0006508432KR - Inclined Conveyor Chain 38,4-VB Claas

€144.78

(Excl. VAT)

Price

(Excl. VAT)

€144.78

Product Description

This chain is the feeder-house conveyor chain for a harvesting machine. It transmits power from the drive sprocket to the slat-and-flight assembly that moves crop material from the header into the threshing mechanism. The chain operates under high tension and in a dusty environment; wear on the pins and rollers causes elongation that leads to slat misalignment and reduced feeding efficiency. The manufacturer machines the side plates and pins to the original profile so that the pitch matches the sprocket tooth spacing without requiring a take-up adjustment beyond the normal range. On installation, verify the chain is not twisted and that the master link, if used, is oriented with the clip closed against the direction of travel.
AgriParts

Product Details

Brand
AgriParts
Type
38.4-VB
Location
Feeder House
Application
Harvesting Machines
Pin Diameter
8.28 mm
Product Type
Chain
Set Includes
No connecting link (0006039491)
Number Of Links
94
Roller Diameter
15.88 mm
Inner Link Width
19.05 mm
Manufacturer
AgriParts
