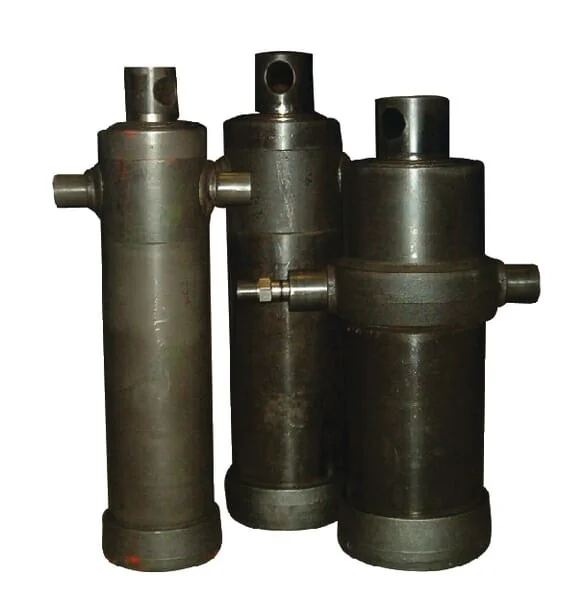

Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye
Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye
Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye
Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye
Available for backorder – we will confirm the soonest available delivery date within 1 business day after ordering
Free shipping

Pay Securely with

Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye

Di Natale Bertelli - TC2031F - Telescopic Cylinder TC 2031 Eye

€260.30

(Excl. VAT)

Price

(Excl. VAT)

€260.30

Product Description

The Di Natale-Bertelli TC2031F is a genuine telescopic hydraulic cylinder designed for demanding agricultural and industrial machinery. This robust cylinder features an eye mount, making it suitable for various lifting and pushing applications. Engineered for durability and reliable performance, it ensures efficient operation in heavy-duty environments.
Di Natale Bertelli

Product Details

Brand
Di Natale-Bertelli
Unit
Each
Stroke
500 mm
Weight
14,5 kg
DIN standard
1629
LMin. length
282 mm
Oil capacity
1,6 l
Number of stages
3
Sealing material
Polyurethane
Stage 1 diameter
46 mm
Stage 2 diameter
61 mm
Stage 3 diameter
76 mm
Cylinder material
Steel S355J2+N
DOutside diameter
95 mm
Max. piston speed
0,5 m/s
Application category
Telescopic
CSide shaft diameter
35 mm
Max. working pressure
180 BAR
Vickers hardness (HV)
HV5/12=500/550
BOil connection length
40 mm
Max. capacity - stage 2
5,2 t
Max. capacity - stage 3
8,1 t
Max. capacity at 180 bar
8,1 t
Oil connection thread type
Metric
Oil connections thread pitch
1.50 mm
Mounting type - rod connection
Bore
Oil connection thread diameter
M18
Piston surface roughness range
0.05-0.15 µm
IMounting bush outside diameter
32 mm
Mounting type - cylinder connection
Trunnion
C1Oil connection to rod end distance
102 mm
FMounting hole to swivel tap distance
180 mm
HMounting hole diameter - rod connection
26 mm
Mounting hole diameter - cylinder connection
40 mm
Manufacturer
Di Natale-Bertelli
