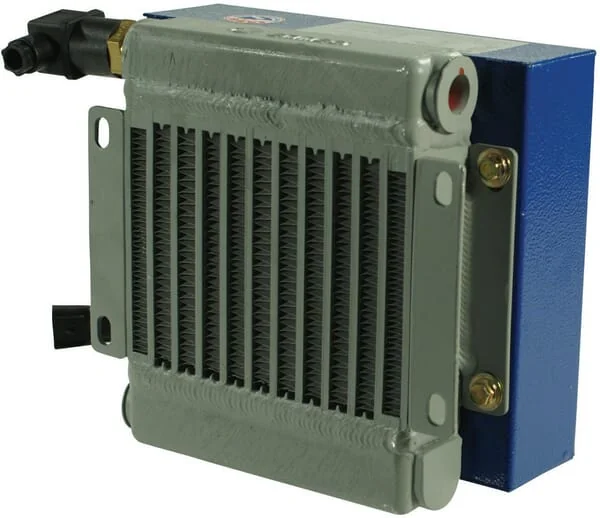

Emmegi - OK201022001 - Emmegi Oil Cooler (230V) 38-50'C 2010K-01-2-01

SKU: emmegi-ok201022001

Emmegi - OK201022001 - Emmegi Oil Cooler (230V) 38-50'C 2010K-01-2-01

€381.26€325.86 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 2 to 4 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€381.26

Brand
Emmegi
Part Numbers
OK201022001
Pros
Compact build-in Complete unit Increased efficiency Long component service life
Unit
Each
Depth
175 mm
Includes
Aluminium radiator Support Impeller/electric motor, voltage according to version Temperature switch Connector for connecting temperature switch/DC motor
Noise level
67 dB(A)
Nominal voltage
230 V
Product details
Temperature switch 38-50ºC Maximum temperature: 120°C The motor must be switched via a relay
Insulation class
54
Long description
Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50ºC thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Max. working flow
40 l/min
Fan outside diameter
175 mm
Max. working pressure
20 BAR
Cooling medium flow type
Suction
Thermostat working temperature
38 - 50
Manufacturer
Emmegi

Oil coolers or heat exchangers are used to increase the exchange of heat between oil and ambient air. The coolers come as standard with a 38-50ºC thermostat. A controlled oil temperature increases the efficiency and lifetime of the components in the system.
Emmegi
Emmegi is a supplier of agricultural machinery components, including hydraulic cylinders and power transmission systems. The brand specializes in high-performance parts for tractors and harvesting equipment. Its products are known for precision engineering and long service life. Shop more than 329 genuine Emmegi spare parts.
