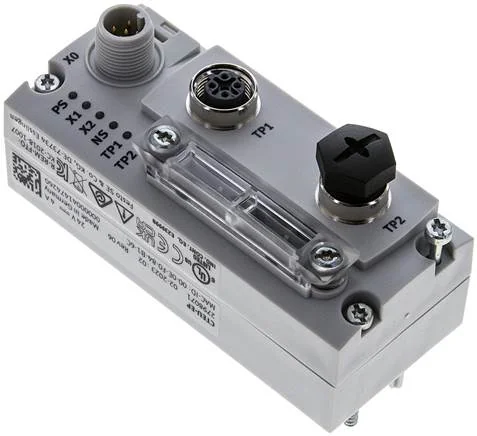

Festo - CTEU-EP-2798071 - Bus Node

SKU: festo-cteu-ep-2798071

Festo - CTEU-EP-2798071 - Bus Node

€597.87€511.00 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€597.87

Brand
Festo
Report
Ethernet / IP, Modbus TCP
Baud Rate
10/100 Mbit/s
Diagnosis
Unterspannung, Kommunikationsfehler, Systemdiagnose
Permission
c UL us - Listed (OL), RCM Mark
Parameterising
Diagnoseverhalten, Failsafe- und Idle Reaktion
Housing Material
PA
Operating Element
DIL switch
Fieldbus Interface
SNMP, Integrated Switch, EtherNet/IP Quickconnect, AddressConflictDetection (ACD), Start-up Parametrierung in Klartext über Feldbus, Systemstatus über Prozessdaten abbildbar, - Azyklischer Datenzugriff über "Explicit Message", Webserver, IP-Adressierung über DHCP, DIL-Schalter, Feldbus oder FFT, Ringtopologie (DLR)
2x Socket M12x1.4-pin, D-coded
Internal Cycle Time
1 ms per 1 byte user data
Protection Category
IP65, IP67
Dimensions W x L x H
40 mm x 91 mm x 50 mm
LED Display Bus Specific
TP1: Network active port 1, TP2: Network active port 2, NS: Network status
Ambient Temperature (°C)
-5 to 50
Bearing Temperature (°C)
-20 to 70
Max. Address Volume, Inputs
KC-EMV
Fieldbus Interface, Function
PS: Operating voltage electronics and load supply, X1: System status module I port 1, X2: System status module I port 2
Max. Address Volume, Outputs
to EU EMC directive
Corrosion Resistance Class KBK
2 - moderate corrosion stress
Operating Voltage Range DC (V)
18 to 30
Power Supply, Connection Pattern
LABS containing materials included, RoHs compliant
Max. Address Volume Inputs (Byte)
64
Intrinsic Power Input At Operating Voltage
Type 65 mA
Fieldbus Interface, Galvanically Separated (A)
4
Intern Power Consumption Nominal Operating Voltage
EDS file
EAN
4052568266523
Manufacturer
Festo
