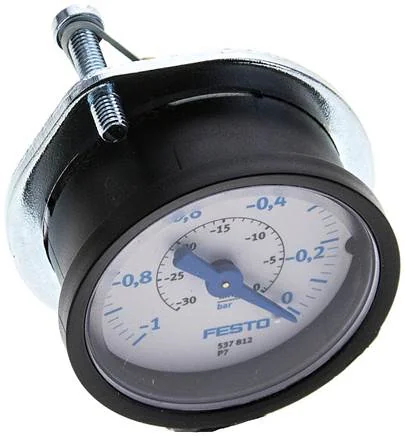

Festo - FVAM-40-V1/0-G1/8-EN-537812 - Vacuum Gauge

SKU: festo-fvam-40-v1-0-g1-8-en-537812

Browse all parts
Festo - FVAM-40-V1/0-G1/8-EN-537812 - Vacuum Gauge

€55.80€47.69 (Excl. VAT)

In stock - ready to ship

Order now for shipping within 4 to 6 business days

Shipping fee: €9.99 incl. VAT

Pay Securely with

Price

€55.80

Brand
Festo
Scale
Bar (external), Double scale, inch Hg (internal) / psi (internal)
Stud Material
Brass
Fastening Type
Front panel integration
Housing Material
ABS
Operating Medium
Compressed air to ISO 8573-1:2010 [7:4:4]
Based On Standard
DIN EN 837-1
Seal Type On Stud
coating
Connection Position
Back side centred
Construction Set Up
Pipe spring pressure gauge
Display Range (bar)
-1
Display Range (inHg)
-30
Material Information
RoHs compliant
PMMA
Pneumatic Connection
G1/8
Installation Position
arbitrary
Medium Temperature (°C)
-20 to 60
Operating Pressure (bar)
-1
Factor Alternating Strain
0.66
Measurement Precision Class
2,5
Nominal Size Pressure Gauge
40
Corrosion Resistance Class KBK
0 - No corrosion stressing
Information About Operating And Control Medium
Oiled operation possible (required in further operations)
0.75
EAN
4052568088859
Manufacturer
Festo
